Professional shooting training and trap shooting competitions require target launching equipment that can provide consistent performance, reliable operation, and efficient target loading. For shooting ranges that need a large target capacity and flexible installation options, a clay pigeon thrower with automatic loading and stable launching performance can significantly improve training efficiency. The FNY-FD300-8 Clay Pigeon Thrower is a precision target thrower independently developed by our company for outdoor shooting range applications, offering a combination of high capacity, smooth launching, and flexible control.

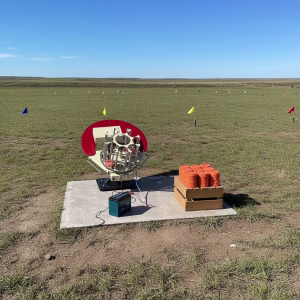

The FNY-FD300-8 is designed for both fixed and vehicle-mounted use in outdoor shooting ranges. It features multiple safety protections, electrically adjustable launch angles, reliable operation, and strong launching power. Unlike manually loaded clay target throwers, this model adopts a chain-driven automatic disc loading mode, allowing clay pigeons to be loaded automatically and continuously. The chain transmission device provides low-noise and reliable automatic loading, helping create a smoother and more efficient shooting training process.

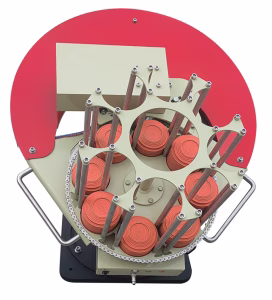

One of the key features of the FNY-FD300-8 is its eight-column trap structure. The trap 8 columns combine carbon steel plates and aluminum profiles to provide sturdiness, stability, and a relatively lightweight and neat structure. The large-capacity design can store up to 240 clay pigeons, making this model particularly suitable for shooting ranges and training activities that require a large number of targets. The increased capacity can help reduce the frequency of manual reloading and support longer training sessions.
The launching mechanism uses aluminum alloy as its main material, while the load-bearing components are made of carbon steel. This construction provides a high service life, safety, and reliability while allowing vulnerable components to be replaced conveniently when necessary. The energy storage mechanism features a wide adjustment range, long service life, and strong elasticity, supporting stable target launching during repeated operation.
The FNY-FD300-8 also uses a national-standard high-torque DC motor as its arming motor. The motor provides fast action and strong torque and is matched with an NMRV reducer to achieve stable and powerful output. The chassis is made of carbon steel and features a thick and reliable structure with multi-directional angle adjustment. This design provides the equipment with a stable foundation while allowing operators to adjust the launching direction according to different shooting training requirements.
Another important advantage is the chain transmission device, which provides low-noise and reliable automatic disc loading. Combined with the automatic loading system, this design allows the FNY-FD300-8 to efficiently prepare clay pigeons for launching while reducing manual intervention. The equipment is suitable for outdoor shooting training and competitions, including trap shooting events, where consistent target presentation and reliable operation are important for maintaining an effective training environment.
The FNY-FD300-8 is designed for 110mm clay pigeons, with customized smoke clays available according to user requirements. Its clay pigeon throwing accuracy can reach ≥99.5%, while the recycle time is approximately 2.5 seconds. The shooting angle can be adjusted from 0 to 50 degrees, allowing different target trajectories to be created for different shooting scenarios. The maximum flight distance of the FNY-FD300-8 can reach approximately 70–90 meters, providing a longer target flight range than the FNY-FD200 series.
The equipment supports a 150-meter wireless control distance and can operate in temperatures ranging from -30°C to +65°C. It also provides Level 6 wind resistance, making it suitable for outdoor shooting environments under different weather conditions. The maximum launch height is less than 10 meters, while the airborne time of the clay target is approximately 4–5 seconds.
According to different customer requirements, additional functions can be integrated into the FNY-FD300-8, including multiple launches, adjustable launch intervals, launch quantity control, and remote control. These customizable functions allow the clay pigeon thrower to be adapted to different shooting training scenarios and range configurations. Our company also has an independent research and development team capable of customizing production according to specific user requirements.
The standard configuration includes one clay pigeon thrower, one pedal control switch, one instruction manual, and one accessory tool kit. A multi-channel remote control is available as an optional configuration, with 1–2 sets available according to user requirements.
With its 240-clay capacity, eight-column structure, chain-driven automatic loading system, electrically adjustable launch angle, and 70–90 meter maximum flight distance, the FNY-FD300-8 Clay Pigeon Thrower provides a high-capacity solution for professional outdoor shooting ranges. Its reliable construction, smooth and low-noise operation, and customizable functions make it suitable for shooting training and competition applications that require efficient and consistent clay target launching.
If you are looking for a high-capacity clay pigeon thrower for a shooting range, fixed installation, or vehicle-mounted application, please contact us to learn more about the FNY-FD300-8. Our professional R&D team can customize functions and production according to your specific shooting training requirements and provide a suitable clay target launching solution for your project.
