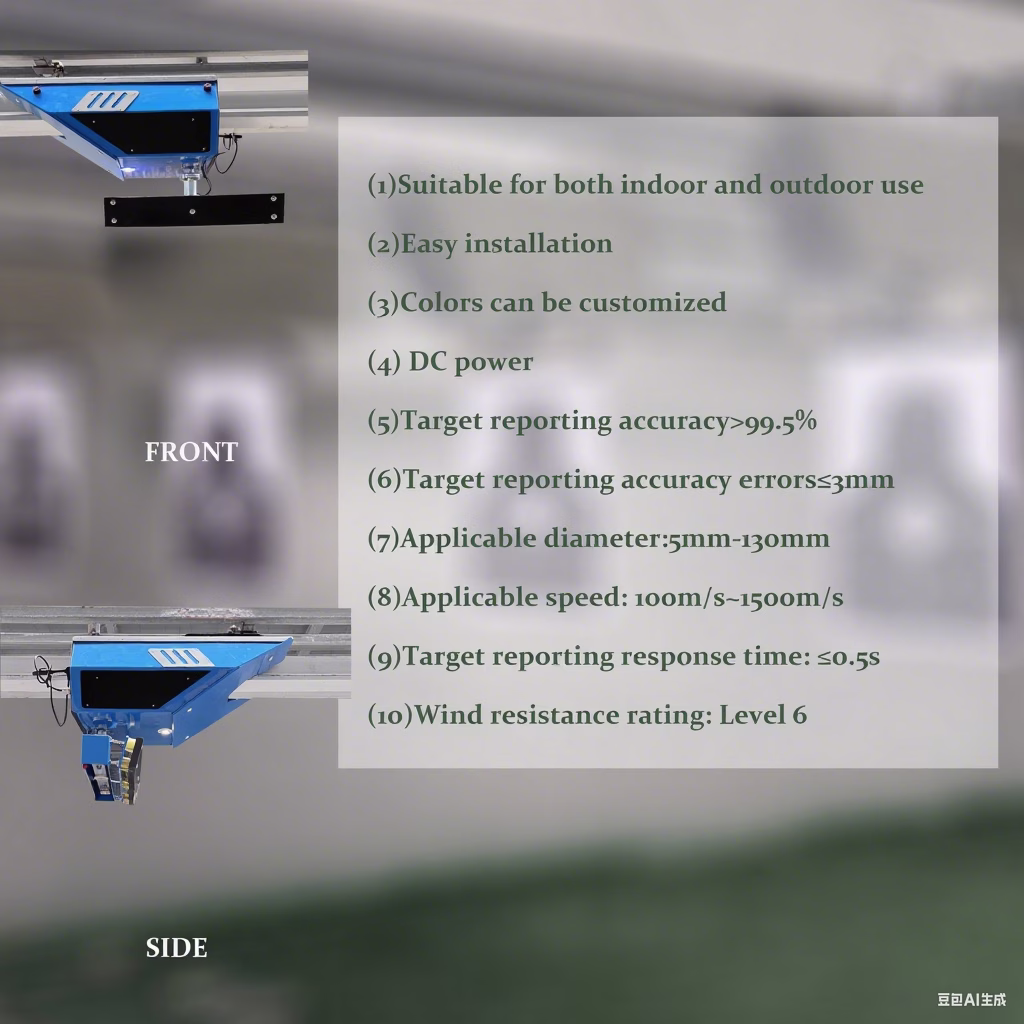

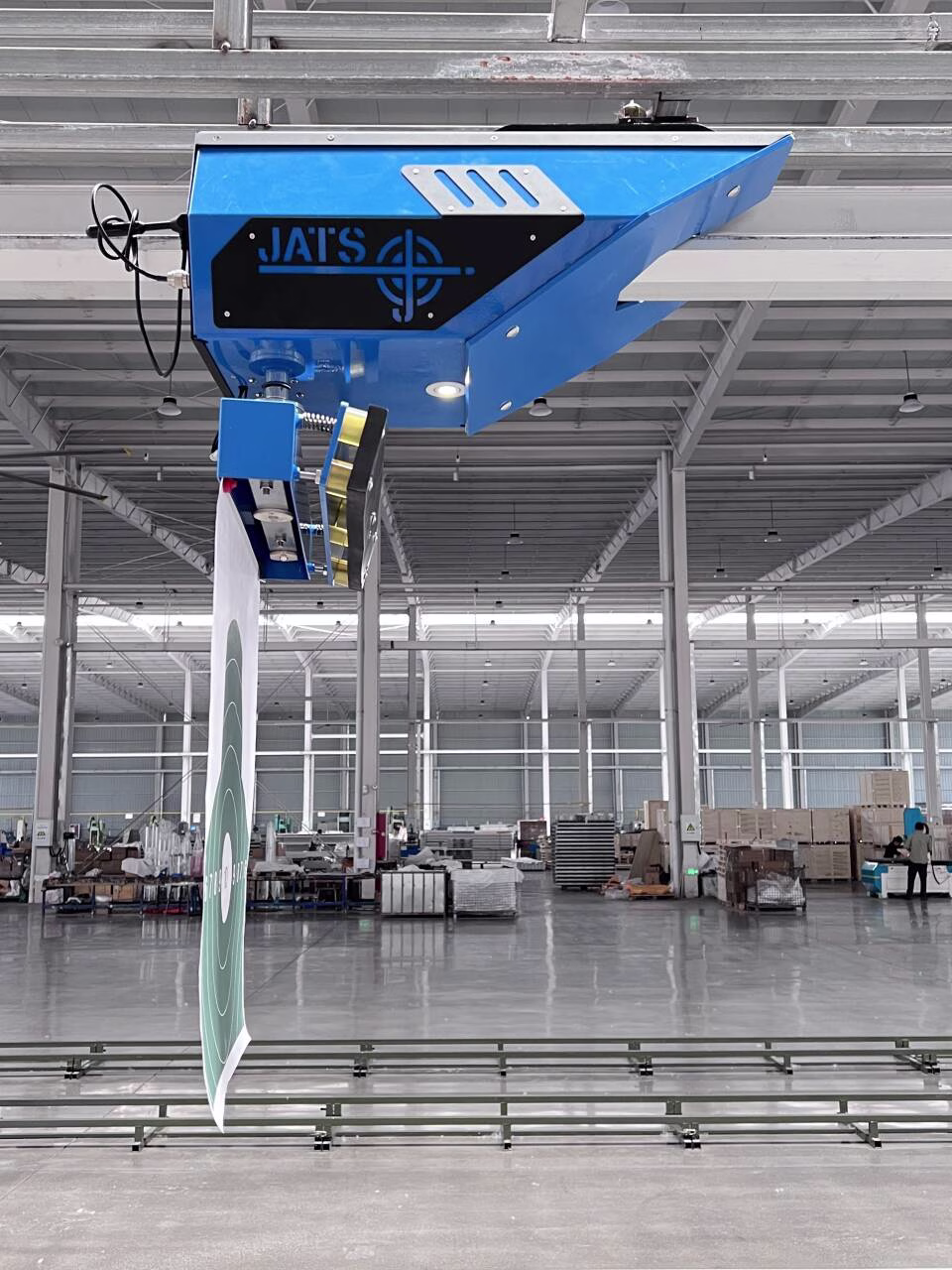

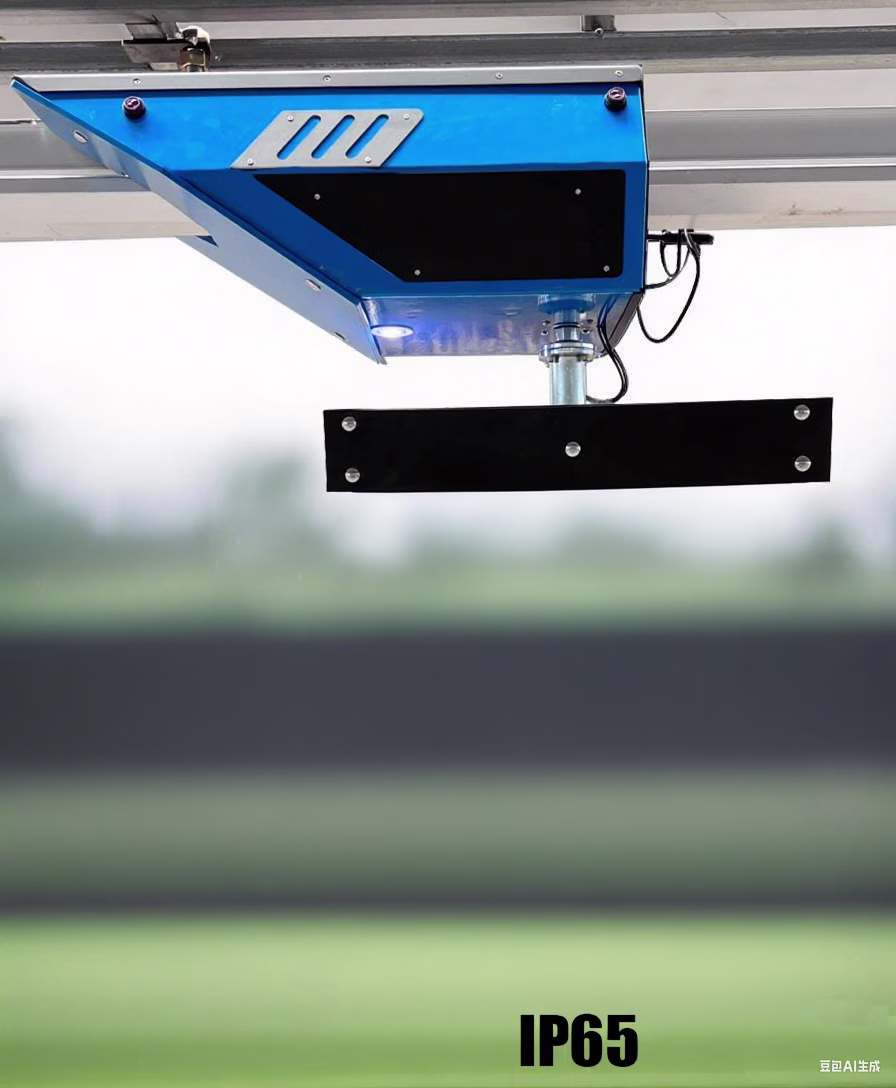

Hanging rotary target

This modular-designed hanging rotating target machine ensures quick disassembly and assembly, suitable for both indoor and outdoor shooting training.

LOMAH hanging rotary target

No.	Part name	Part name	Unit	Remarks
1	Master server	1	pc	Including software
2	Communication control system	1	set
3	Shooter monitor	1-30	pc	Including software
4	Shock wave hanging rotary target	1-30	pc
5	Power supply battery pack	1-30	set	24v12ah
6	Charging device	1-30	set
7	HF antenna	1-30	pc
8	Target	1-30	pc
9	Spare parts kit	1-30	set
10	Instruction manual	1	pc

Inquiry

Download

Product Description Product Composition Specifications Product Features Complete Set Configuration

PRODUCT DESCRIPTION

The H-bar hanging rotary target is a precision positioning target independently developed by our company. It can be controlled to stop at any position through software and integrated with our company's automatic target reporting system. Accurately complete target reporting and position control. This target is suitable for indoor shooting training and supports shooting with pistols. During training, it is possible to simulate the appearance characteristics, sudden appearance, and covert movements of hypothetical enemy targets. Support high-precision target reporting. It can meet the training needs of precision shooting, applied shooting, etc.

PRODUCT COMPOSITION

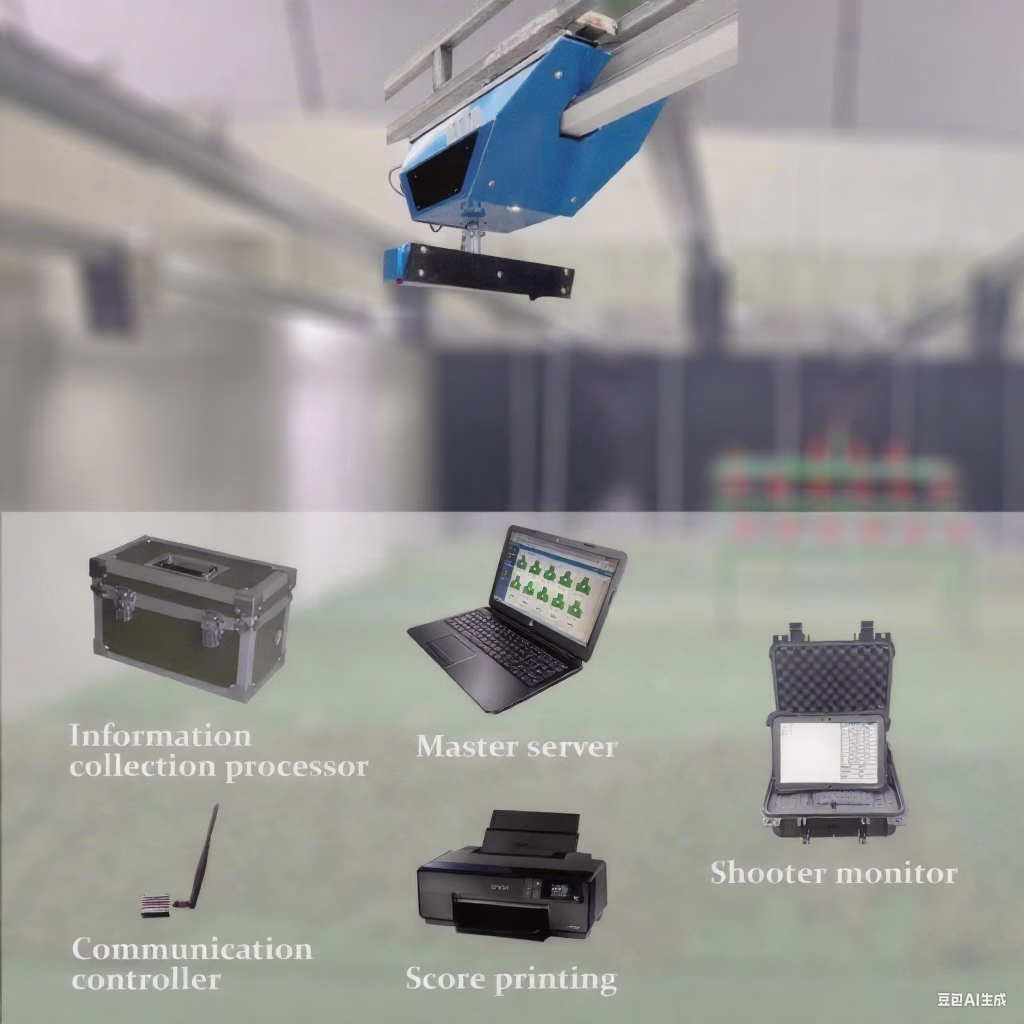

The hanging rotary target system consists of Master server, Router, Communication system, Target machine, Charging device, ECU, Encoder, Walking motor, Rotary display motor, Bulletproof plate, Target plate: EVA material or paper, Aluminum track and Battery. The master server connect target machine by Zigbee. The master server and the shooter monitor are connected by WIFI.

SPECIFICATIONS

No.	Item	Target
1	Applicable target type	Chest ring target, ring target, body target, head target, etc
2	Applicable gun type	pistols
3	Applicable projectile speed	100m/s～460m/s
4	Rotary time	≤1s
5	Target reporting accuracy	≥99.5%
6	Target reporting accuracy error	≤3mm
7	Wireless control distance	1-5000m（Intervisibility）
8	Wind resistance	L6
9	Target reporting response time	≤0.5s
10	Applicable temperature	-30 ℃~+65 ℃

PRODUCT FEATURES

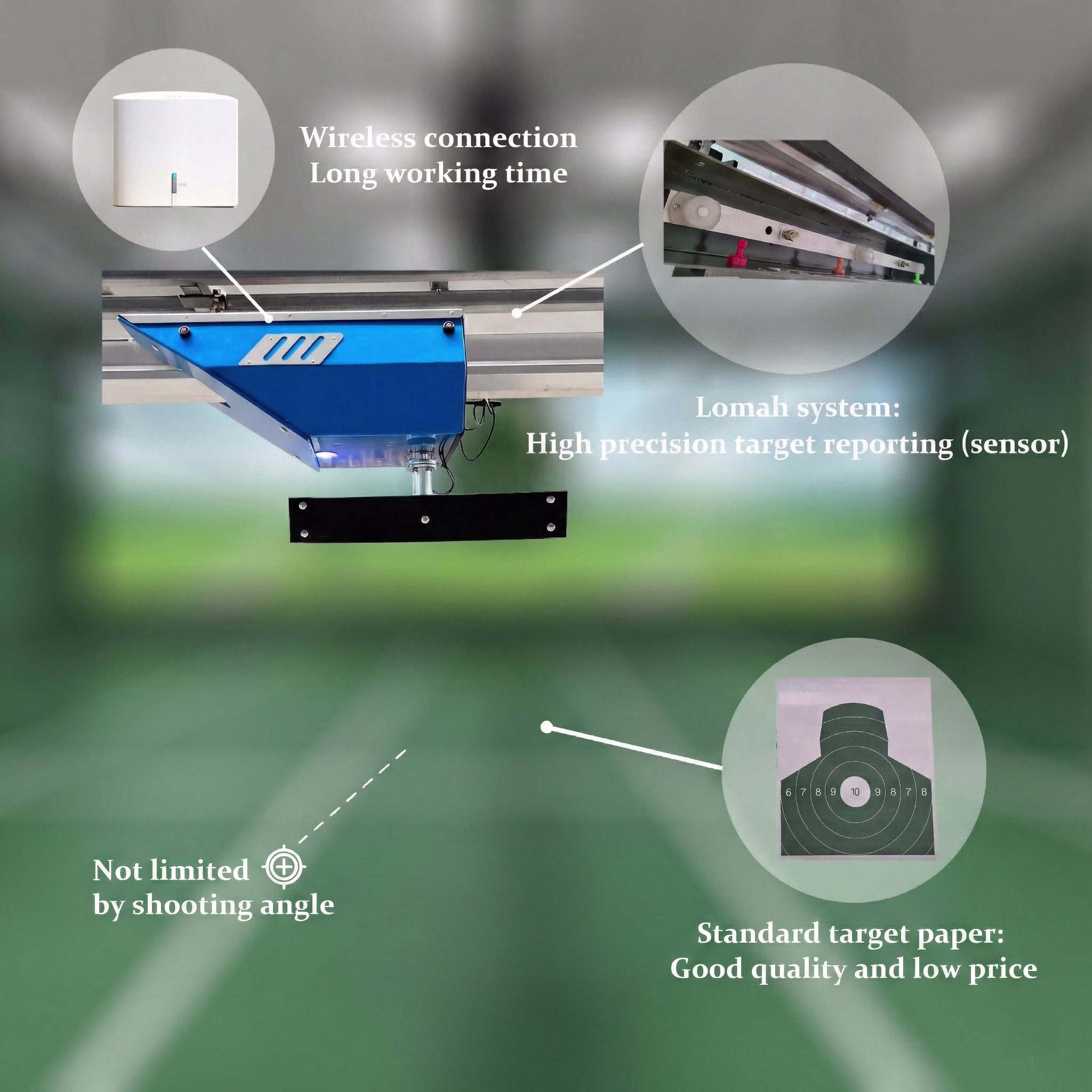

The hanging rotary target system is mainly used for indoor shooting training in shooting ranges, not limited by shooting angle.
The hanging rotary target reporting system can meet the shooting needs of different pistols.
No special targets are required, just use a regular EVA target box and regular target paper.
This software supports multiple national language settings such as Chinese, English, Russian, French, Arabic, etc
The LOMAH system can automatically report hit location in real-time through voice and image.
No special targets are required, just use a regular EVA target box and regular target paper.
The master server and shooter monitor can display images and report targets by target type, impact point, projectile sequence, number of single shots, total number of shots, projectile distribution evaluation, and shooter information through voice.
The master server software can group the list of trainees as needed, and can import the list of trainees for grouping to meet the training needs in different scenarios.

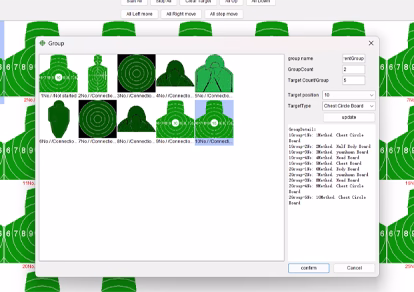

Under grouping conditions, parameter settings can be made for target type selection, target number selection, target display time, reverse target time, and number of cycles, as well as whether to hit the reverse target.

COMPLETE SET CONFIGURATION

No.	Part name	Part name	Unit	Remarks
1	Master server	1	pc	Including software
2	Communication control system	1	set
3	Shooter monitor	1-30	pc	Including software
4	Shock wave hanging rotary target	1-30	pc
5	Power supply battery pack	1-30	set	24v12ah
6	Charging device	1-30	set
7	HF antenna	1-30	pc
8	Target	1-30	pc
9	Spare parts kit	1-30	set
10	Instruction manual	1	pc
