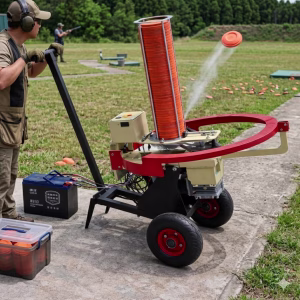

Precision FNY-FD200-1 Clay Pigeon Thrower for Professional Shooting Training

Professional shooting training requires reliable and precise target launching equipment to create consistent and challenging shooting scenarios. A high-quality clay pigeon thrower needs to provide stable launching performance, flexible adjustment, reliable operation, and sufficient power to support different types of shooting exercises. The FNY-FD200-1 Clay Pigeon Thrower is a precision target launcher independently developed by our company, designed to provide a dependable solution for outdoor shooting training and shooting range applications.

The FNY-FD200-1 features multiple safety protections, reliable operation, strong launching power, and manual adjustment of the launching angle and height. It is designed to launch 110mm clay pigeons and can be used for a variety of shooting training and competition scenarios. According to user requirements, additional functions such as multiple launches, adjustable launch intervals, launch quantity control, remote control, and electric adjustment of the launch angle can be added, allowing the equipment to be adapted to different shooting training requirements.

The clay pigeon thrower adopts a detachable disc compartment structure for convenient transportation and operation. Each compartment can hold up to 50 clay pigeons, providing an efficient loading solution for training sessions. The electrical control box uses an independently developed circuit board, providing reliable and stable operation while also allowing the control system to be further developed according to specific user requirements. This flexible design makes the FNY-FD200-1 suitable for customers who require customized functions for their shooting range projects.

The launching mechanism is designed with durability and reliability in mind. Its main material is aluminum alloy, while the load-bearing components use carbon steel to provide high service life, safety, and reliability. Vulnerable components can also be replaced conveniently when necessary, helping simplify maintenance during long-term use. The energy storage mechanism provides a wide adjustment range, long service life, and strong elasticity, helping the launcher maintain consistent performance during repeated target launching.

The dynamic system uses a standard high-torque DC motor combined with an NMRV reducer. The motor provides fast operation and strong torque, while the reducer helps deliver stable and powerful output to the launching system. The chassis is equipped with silent and wear-resistant solid rubber wheels, making the clay pigeon thrower lightweight and easy to move while providing good performance during outdoor operation. These design features allow operators to transport and position the equipment efficiently at different shooting locations.

The FNY-FD200-1 provides a shooting angle adjustment range of 0 to 50 degrees, allowing operators to create different clay target trajectories according to training requirements. Its clay pigeon throwing accuracy can reach ≥99.5%, while the recycle time is approximately 2.5 seconds, supporting efficient continuous training. The wireless control distance can reach 150 meters, and the equipment is designed to withstand wind conditions up to Level 6. It can operate in temperatures ranging from -30°C to +65°C, making it suitable for demanding outdoor shooting environments.

For the FNY-FD200-1 model, the full-capacity quantity is 50 clay pigeons, and its maximum flight distance is approximately 50–60 meters. The maximum launch height is less than 10 meters, while the airborne time of the launched clay target is approximately 4–5 seconds. Standard 110mm clay pigeons are applicable, and customized smoke clays are also available according to user requirements. These specifications provide shooting range operators with flexibility when designing different training exercises and competition scenarios.

A standard FNY-FD200-1 configuration includes one clay pigeon thrower, one pedal control switch, one instruction manual, and one accessory tool kit. A multi-channel remote control system is also available as an optional configuration, with 1–2 sets available according to user requirements. The company also has an independent research and development team that can customize the equipment according to specific customer needs, providing additional flexibility for different shooting range layouts and training applications.

Whether used for shooting training, shooting competitions, or outdoor shooting range activities, the FNY-FD200-1 Clay Pigeon Thrower provides reliable target launching performance, flexible adjustment, and convenient operation. With its high throwing accuracy, durable construction, powerful dynamic system, and customizable control functions, it offers an efficient solution for customers looking for professional clay target launching equipment.

If you are looking for a reliable clay pigeon thrower for your shooting range or have specific requirements for launching angle, launch frequency, remote control, or other functions, please contact us. Our independent R&D team can provide customized production according to your requirements and help you develop a suitable clay target launching solution for your shooting training project.
