Airgun target

Airgun target

This machine is developed according to the rules of the International Shooting Federation competition and has been approved and issued a certificate of conformity by the National Shooting Association. It has been highly praised by users both domestically and internationally.

Airgun target

Product Name	Remarks
Running distance	10m
Usage	Air pistol, air rifle
Single trip	7 seconds
Power supply voltage	220V, 50Hz
Motor power	15W

PRODUCT COMPOSITION

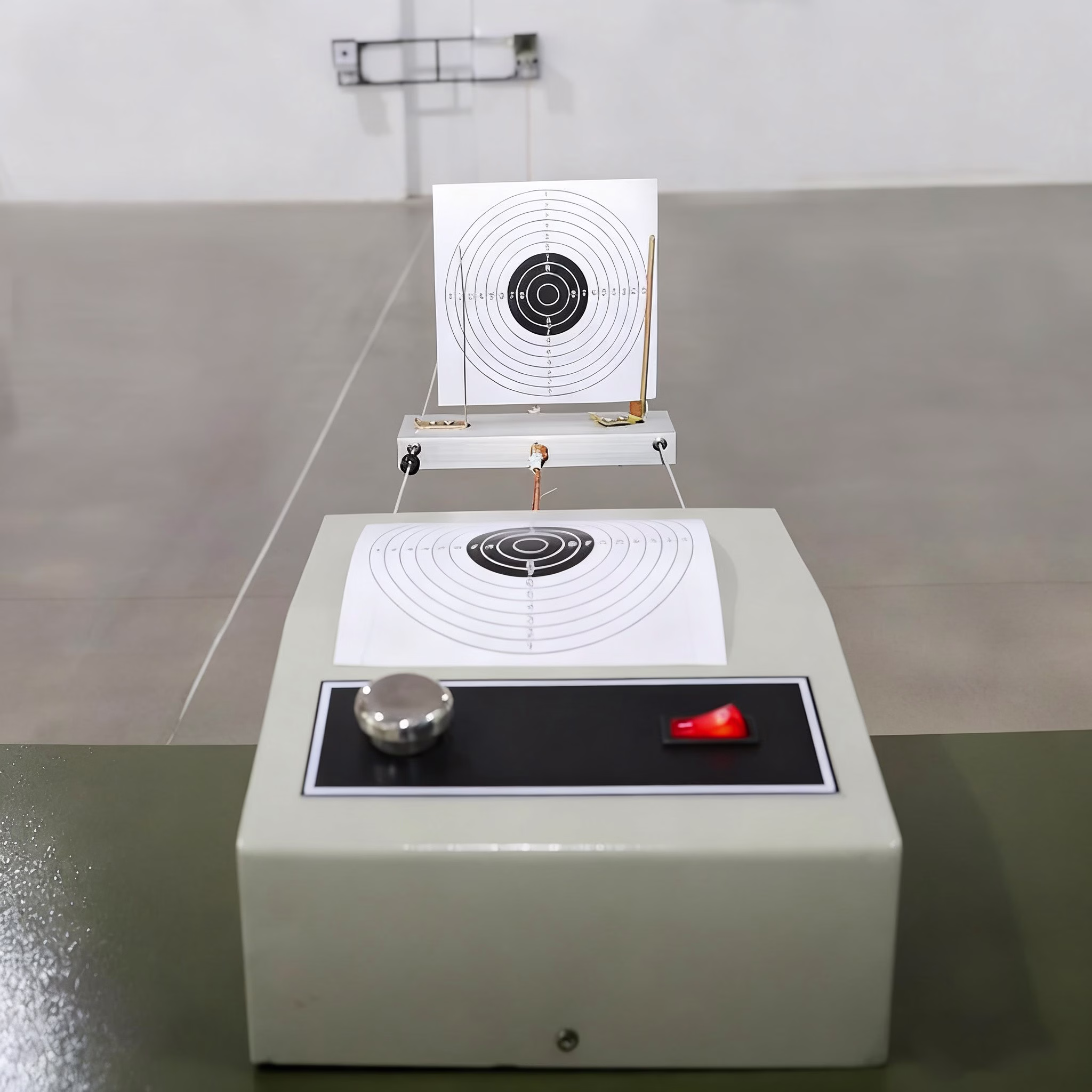

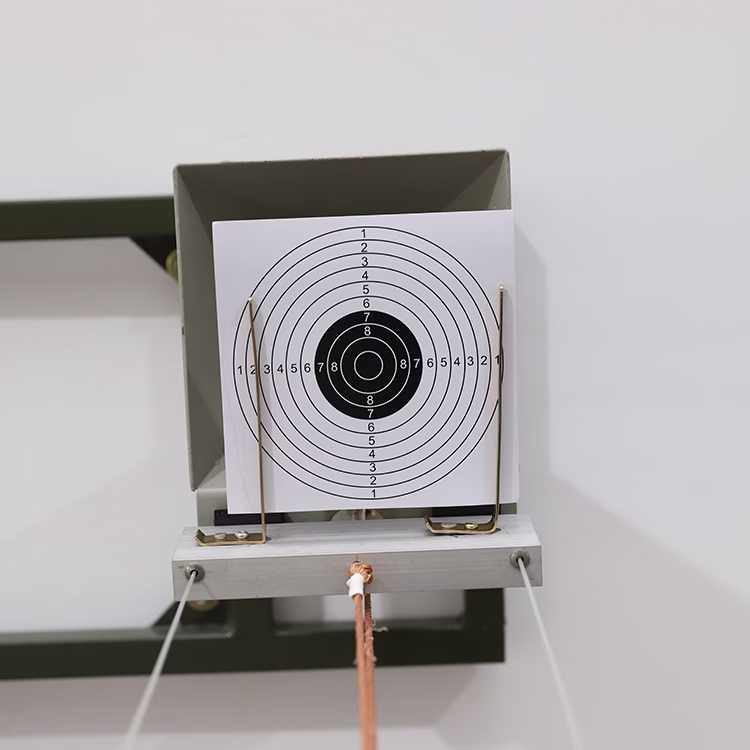

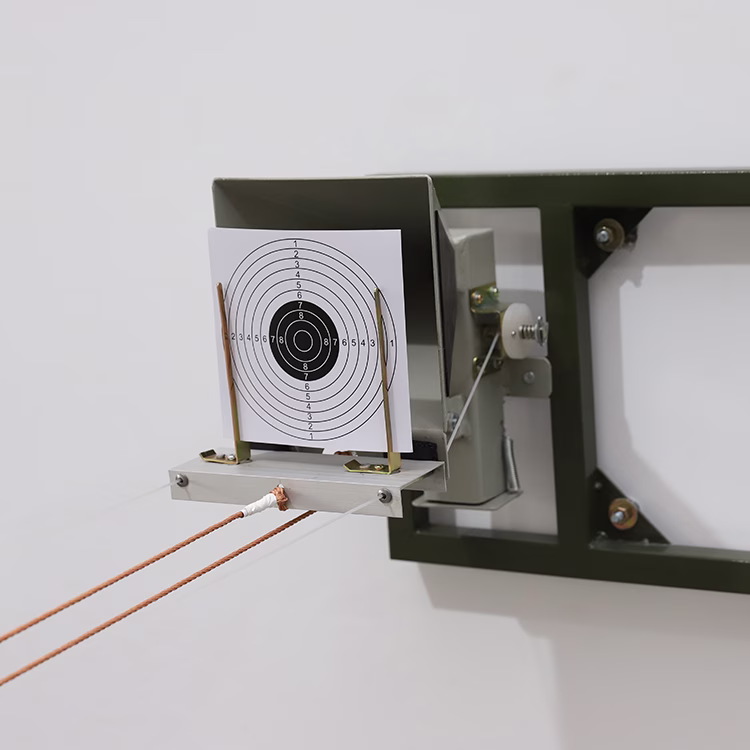

The airgun target consists of a housing and control panel, target, and support structure.

The controller adopts a single button control for reciprocating operation and is resistant to impact;

The target vehicle in place is controlled by advanced electronic eyes to prevent impact, automatically cut off power, and does not have various switches installed on the conveyor and track ropes;

The motor adopts Sino foreign cooperative technology, with low noise and long service life. Under normal use, if there is any damage, it will be covered by a lifetime free warranty and replacement;

SPECIFICATIONS

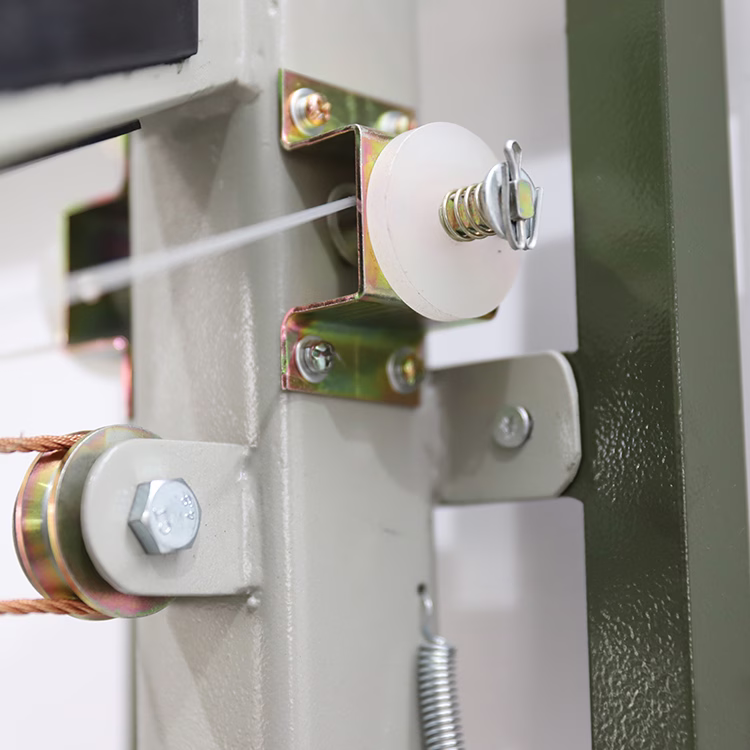

Fix the ammunition receiver according to the standard, then fix the controller on the target platform, pull the track rope and conveyor rope, and check whether the electrical components inside the controller are obstructed during transportation;Insert the power plug into the power socket, turn on the power switch of the controller, and press the button to operate back and forth;If the target car is not in place accurately, the adjustment gong at the end of the photoelectric eye can be adjusted. Rotate it forward to move the target car forward, and rotate it backward to move it backward; The K2 switch on the control board has a delay of+0.5 seconds for the target vehicle to stop before the ammunition collector when pressed once; The delay for the target vehicle to stop before the ammunition collector is -0.5 seconds for each press of the K1 switch.The tightness of the conveyor rope must be appropriate, and it should be tightened a little after installation and use.

PRODUCT FEATURES
