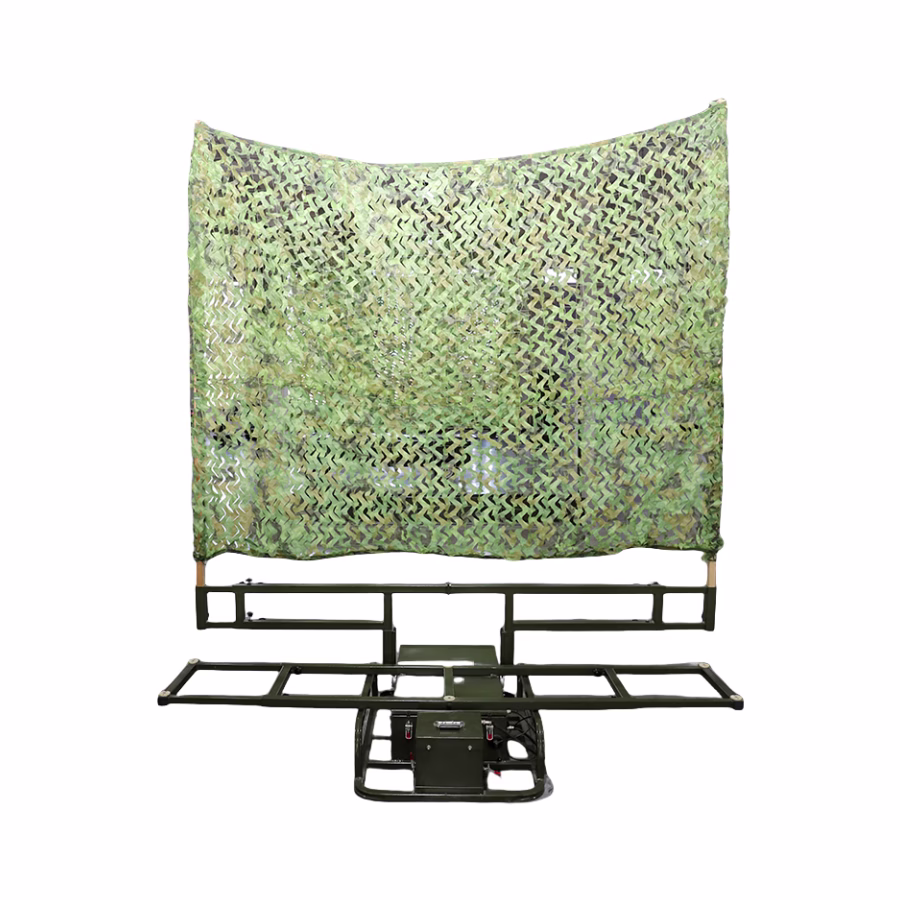

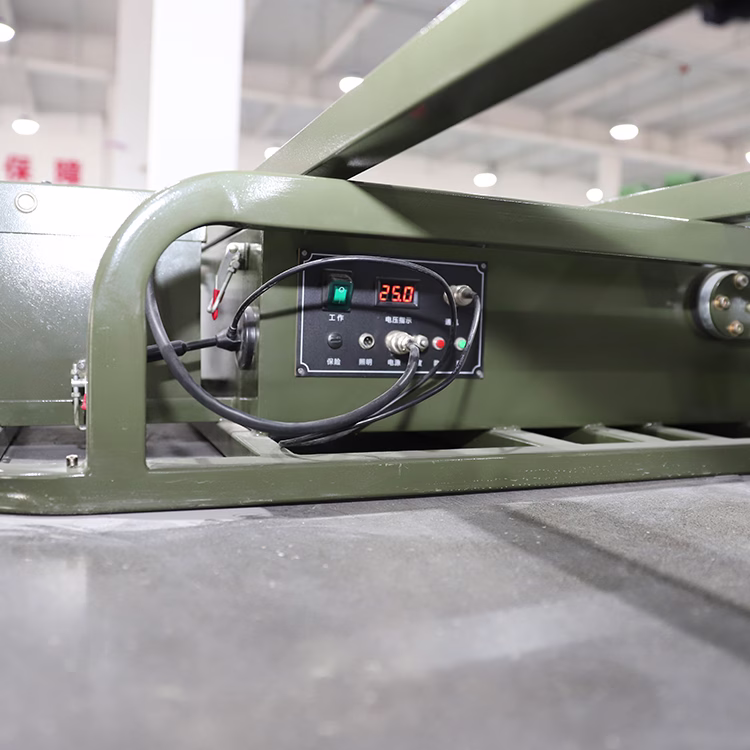

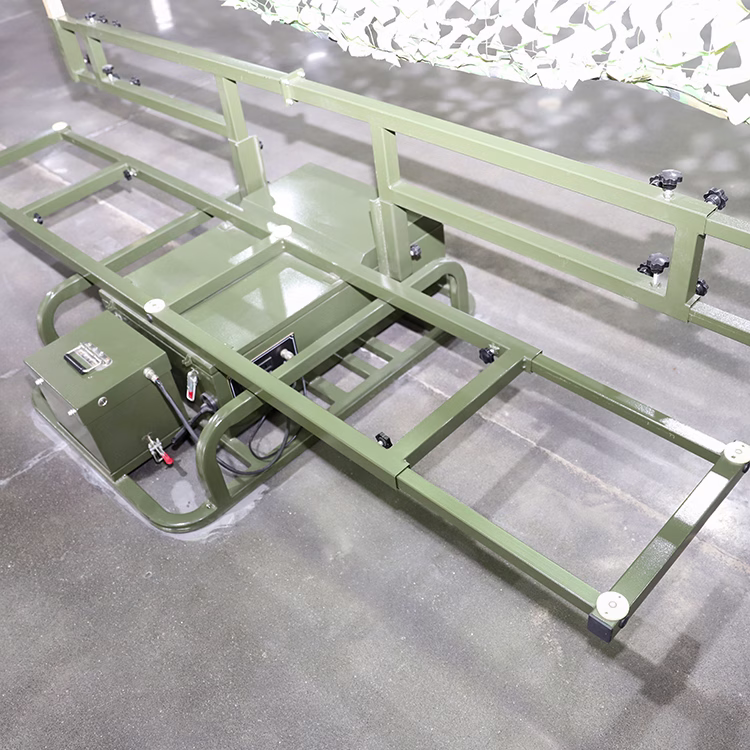

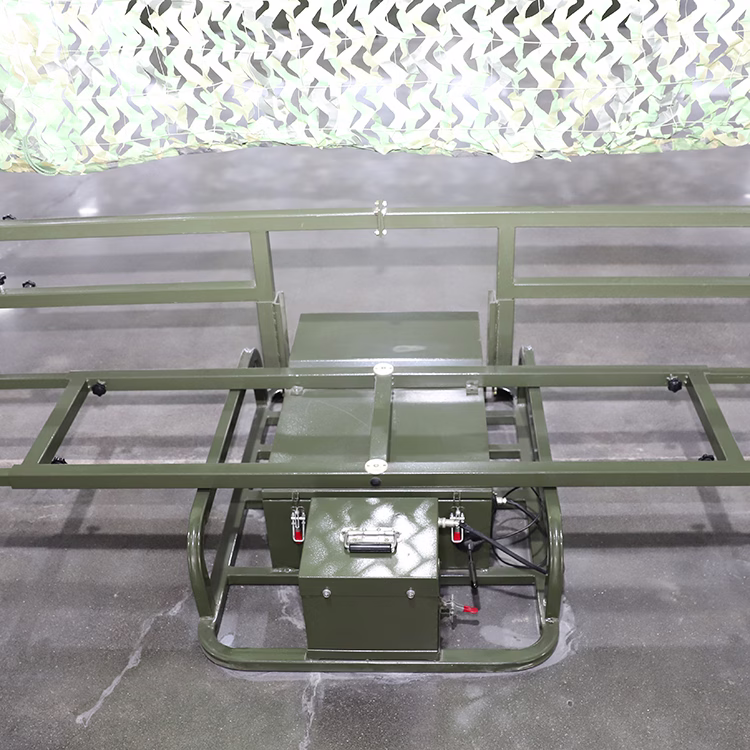

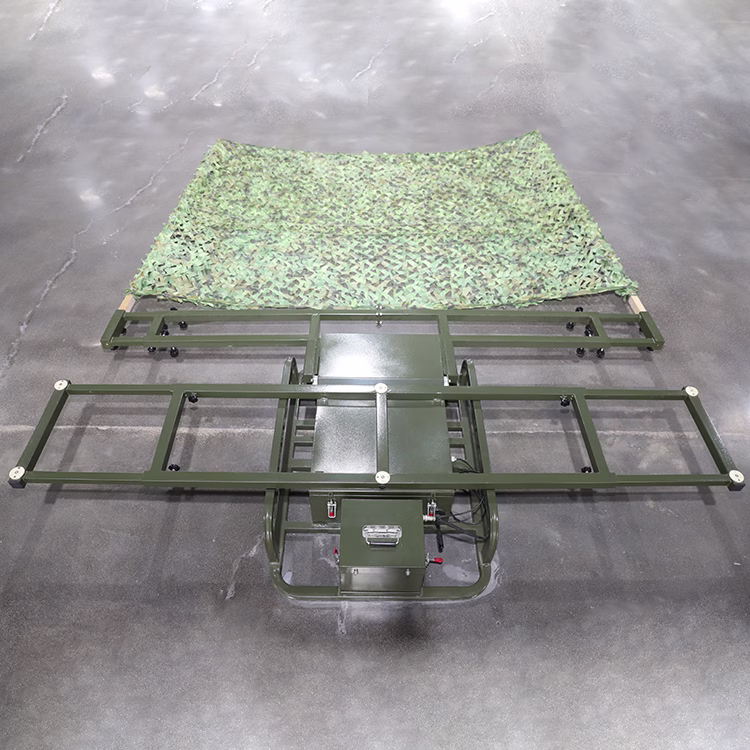

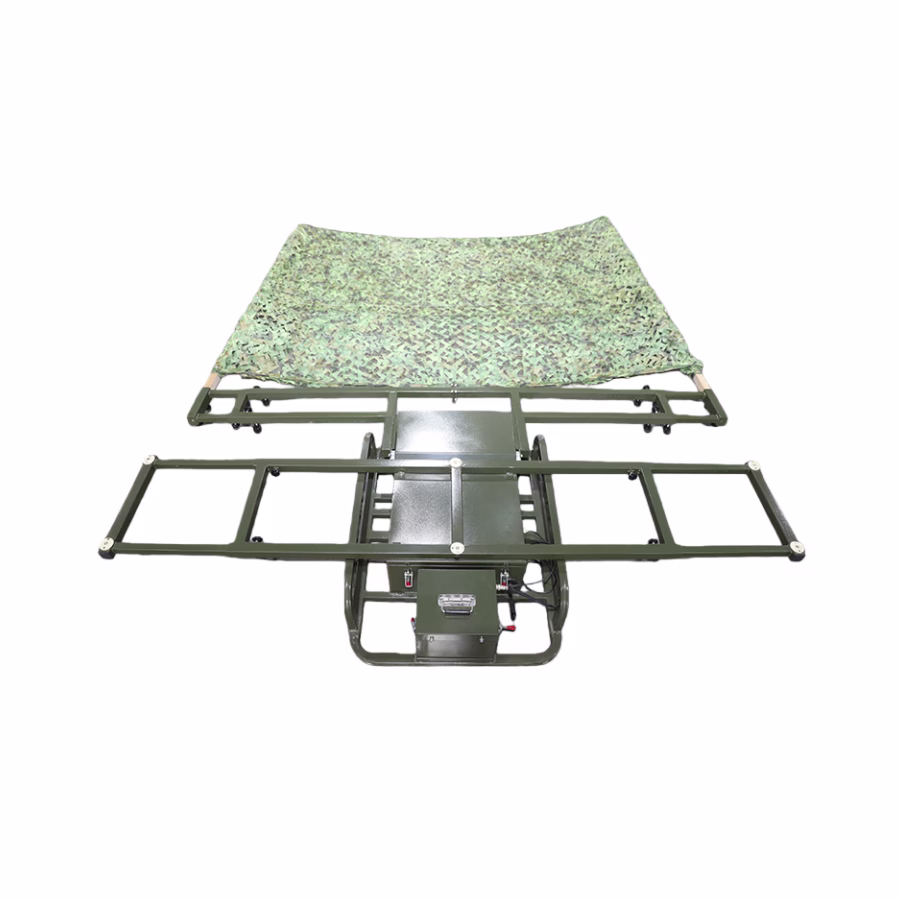

Armor H-bar pop-up target

The Armor H-bar pop-up targets are used to provide concealed artillery targets for various types of armored vehicles in trainer shooting and combat shooting. It can carry various types of trainer shooting and combat shooting camouflage net targets. By installing a shock wave target device, it is possible to collect the hit data of various calibers of ammunition below 130mm and achieve the automatic target scoring.It can realize automatic pop-up target by remote controlling, and complete various comprehensive training in trainer shooting or combat shooting.

No.	Part name	Quantity	Unit	Remark
1	Master sever	1	pc	Including software
2	Communication system	1	set
3	Armor H-bar pop-up target	1	pc
4	Target remote control	1	set
5	Power supply battery pack	1	pc	24v38ah
6	HF antenna	1	set	900MHZ
7	Target plate	1	set	Camouflage net
8	Target rod	2	pc	Wooden
9	Target charger	1	set
10	Spare parts kit	1	set
11	Instruction manual	1	pc
12	Certificate card	1	pc
13	Packing box	1	pc	Wooden box

Inquiry

Download

Product Description Product Composition Specifications Product Features Complete Set Configuration

PRODUCT DESCRIPTION

The Armor H-bar pop-up targets are used to provide concealed artillery targets for various types of armored vehicles in trainer shooting and combat shooting:

It can carry various types of trainer shooting and combat shooting camouflage net targets.

By installing a shock wave target device, it is possible to collect the hit data of various calibers of ammunition below 130mm and achieve the automatic target scoring.

It can realize automatic pop-up target by remote controlling, and complete various comprehensive training in trainer shooting or combat shooting.

PRODUCT COMPOSITION

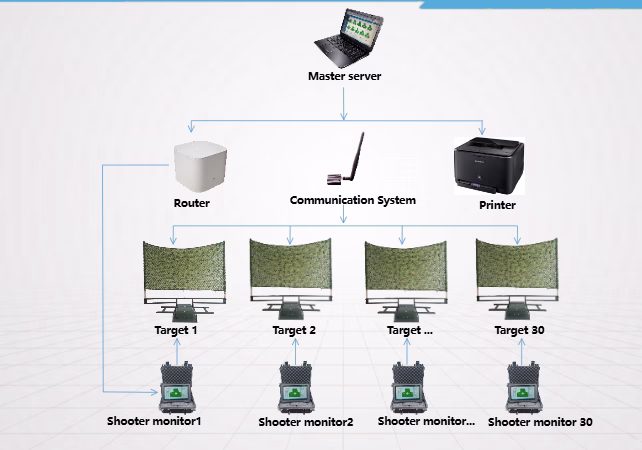

The Armor H-bar pop-up target system consists of a master server, a router, a communication system, chargers and batteries,armor H-bar pop-up target machine , and target plates. By analyzing the process of projectile incidence and utilizing the time difference to map the model onto the target position based on the spatial geometric relationship between the impact point and the sensor array, the position of the impact point can be calculated.

The master server connects to the target machines via Zigbee, and links to the shooters' monitors through LAN/Wi-Fi. This system supports functions such as inputting, editing, and deleting participant information, training courses, and training plans, as well as querying and printing shooting scores.

The impact point positon can be calculated, by analyzing the process of projectile incidence and using the time difference to map the model to the target position based on the spatial geometric relationship between the impact point and the sensor array.

A high-power communication system can provide 2.4G wireless services, providing a cleaner wireless environment, and more stable wireless access. It can accurately transmit signals from the target and the master control server to each other within a range of 1-500 meters.

SPECIFICATIONS

No.	Item	Target
1	Applicable target plate	A wooden target board and gauze target,no less than 50kg
2	Applicable weapon	Large caliber weapons such as various artillery and tanks
3	Applicable bullet diameter	12.7mm-130mm
4	Applicable velocity	400m/s~1500m/s
5	Applicable temperature	-30℃~+65℃
6	Rotary time	＜5s
7	Target reporting accuracy	≥98%
8	Target reporting accuracy tolerance	≤10cm
9	Wind resistance rating	Level 6
10	Wireless control distance	1-3000m（Intervisibility）
11	Rain proof performance	1.7mm/min，30min
12	Target reporting response time	≤1s
13	Battery pack	24v38ah
14	Number of controllable targets simultaneously	≤10sets

PRODUCT FEATURES

The Armor H-bar pop-up target can automatically execute the explicit and implicit actions according to the explicit and implicit target time, implicit target time, and explicit and implicit target times set by the remote control command.
The target plane uses the time difference to map the model to the target position and calculate the impact point position according to the spatial geometric relationship between the impact point and the sensor array by analyzing the process of projectile incidence.
The target can be set to hit the hidden target through the upper computer software. The shock wave hidden target has multiple control modes such as manual control, automatic control, and automatic cycle control.
It is applicable to shooting training with multiple caliber weapons from 12.7mm to 130mm. It's used to provide concealed artillery targets for various types of armored vehicles in trainer shooting and combat shooting.
Under grouping conditions, target type can be selected, and target number can be selected in batch or in disorder for grouping setting.

COMPLETE SET CONFIGURATION

No.	Part name	Quantity	Unit	Remark
1	Master sever	1	pc	Including software
2	Communication system	1	set
3	Armor H-bar pop-up target	1	pc
4	Target remote control	1	set
5	Power supply battery pack	1	pc	24v38ah
6	HF antenna	1	set	900MHZ
7	Target plate	1	set	Camouflage net
8	Target rod	2	pc	Wood
9	Target charger	1	set
10	Spare parts kit	1	set
11	Instruction manual	1	pc
12	Certificate card	1	pc
13	Packing box	1	pc	Wooden box
