A clay pigeon thrower is a device used to launch
clay pigeons. It is mainly used in shooting sports,
where it propels clay targets into the air using
spring or motor power for shooters to practice or
compete with.

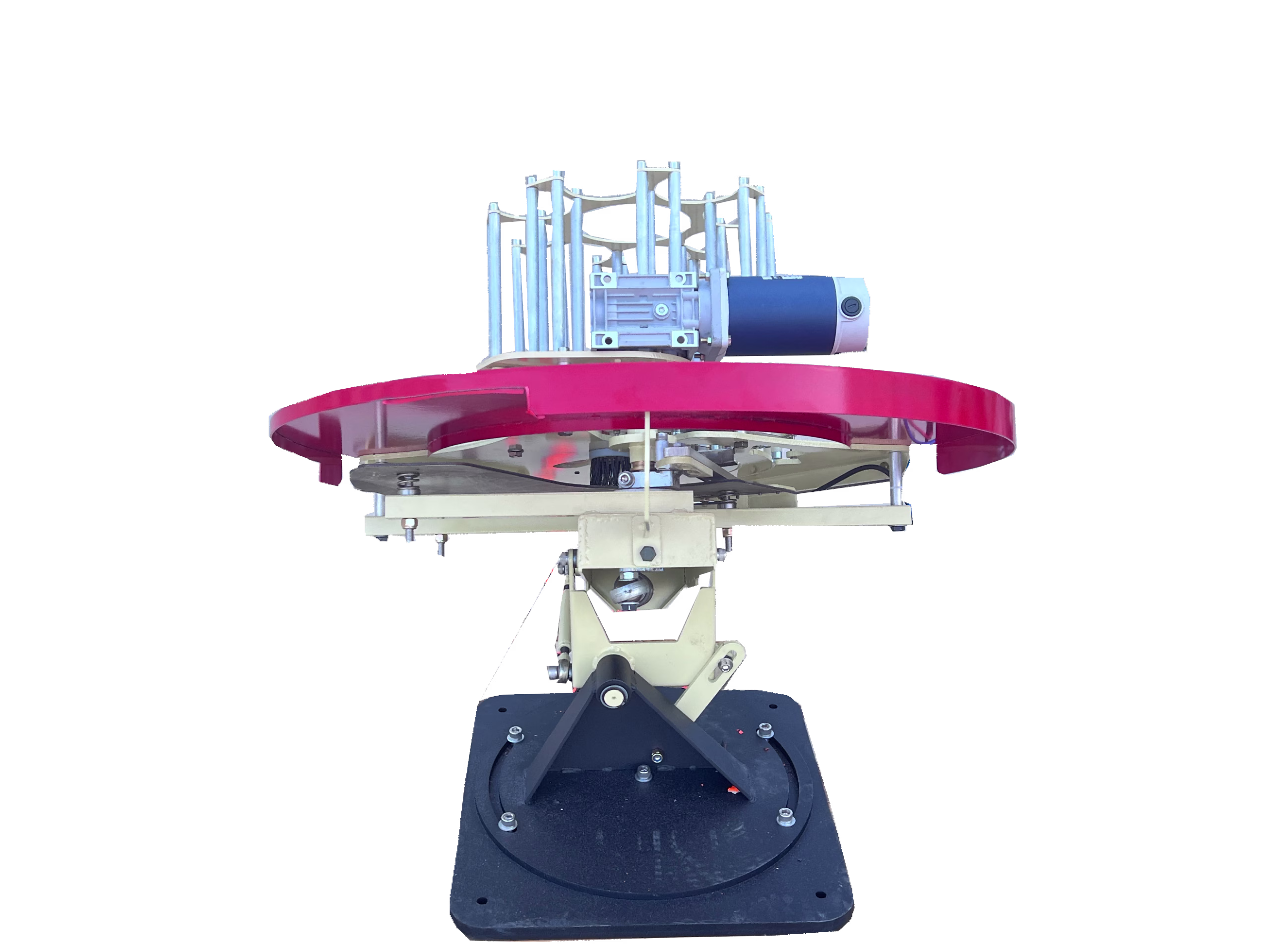

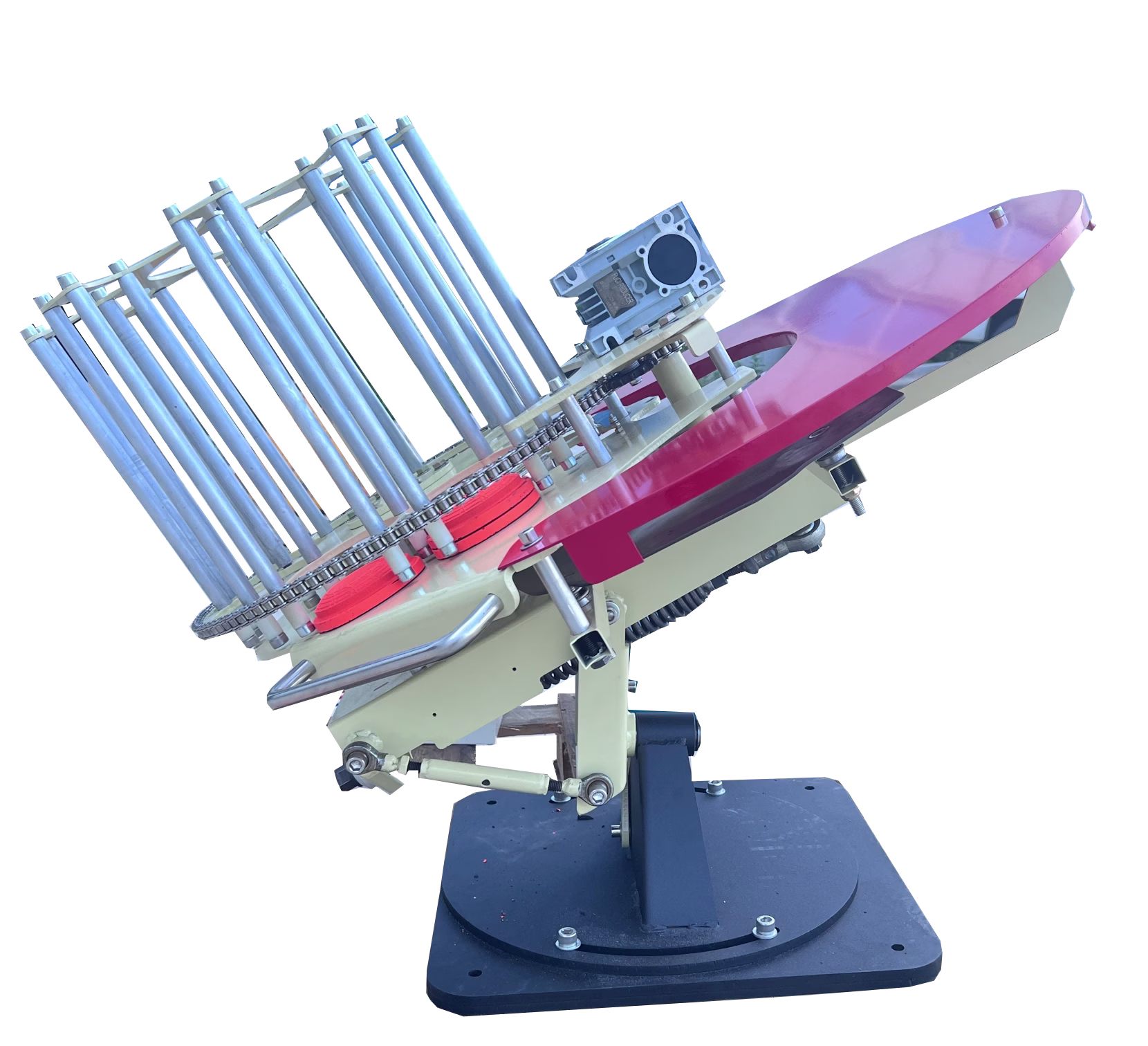

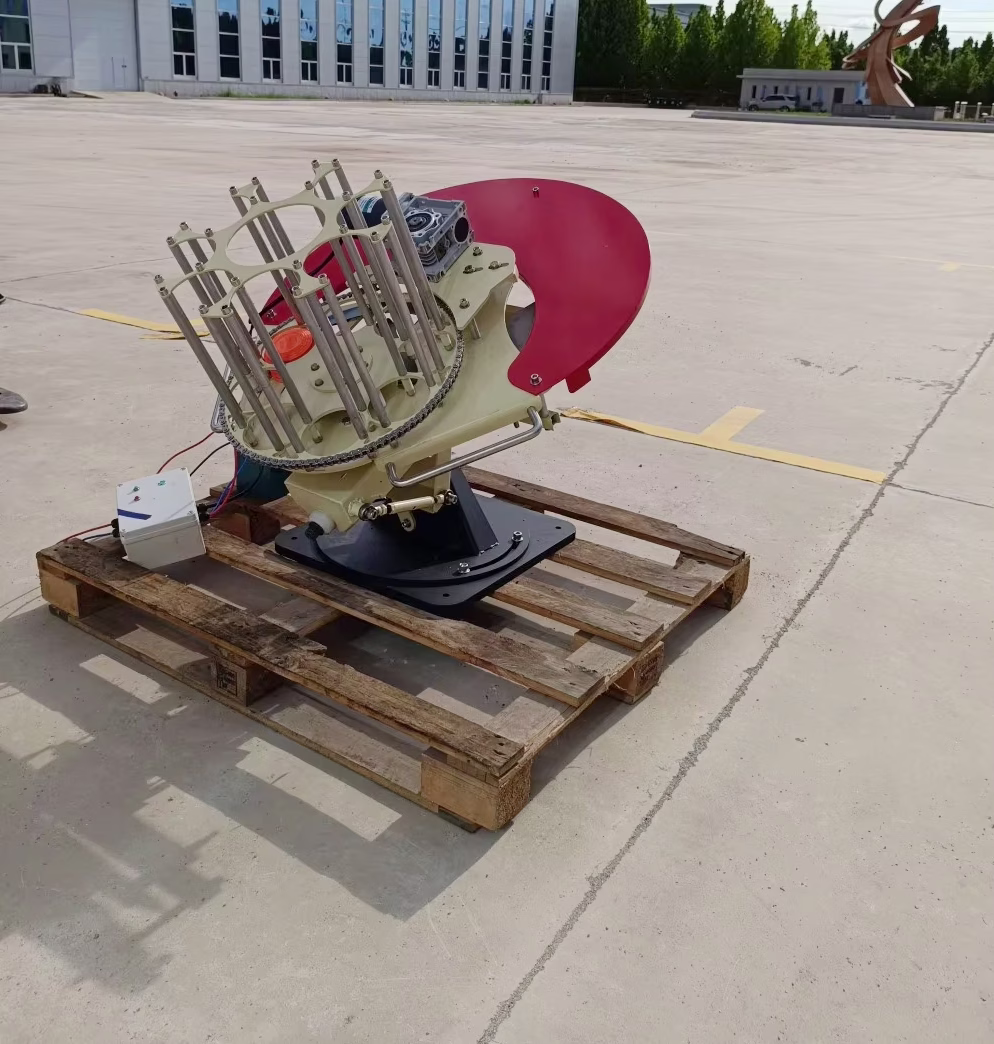

The FNY-FD300-8 clay pigeon thrower is a precision target thrower independently developed by our company. This target is suitable for fixed and vehicle mounted use in outdoor shooting ranges, with multiple safety protections, reliable movements, strong power, adopting a chain driven automatic clay loading mode, low noise, smooth launch and other advantages.
According to user needs, functions such as multiple launches, launch interval time, launch quantity, remote control, and electric adjustment of launch angle can be added to meet the training needs of shooting applications in different situations.

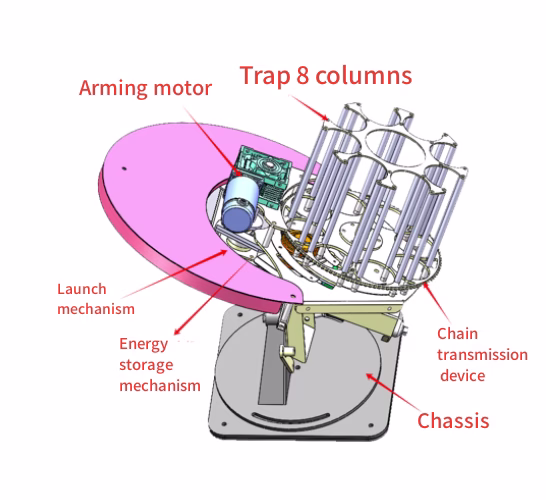

Trap 8 columns：
It adopts a combination of carbon steel plates and aluminum profiles, featuring sturdiness, stability, light weight, neatness, and a large capacity for storing discs.
Launch mechanism：
The main material is aluminum alloy, and the load-bearing part is carbon steel, with a high service life, safety and reliability, and easy replacement of vulnerable parts.
Energy storage mechanism：
Wide adjustment range, long service life, strong elasticity.
Arming motor：
Adopting the national standard high torque DC motor, the action is fast and the torque is large, matched with NMRV reducer, the power output is stable and strong.
Chassis and chain transmission device：
Chassis is made of carbon steel material, thick and reliable with multi-directional angle adjustment. Chain transmission device has low noise, reliable automatic disc loading action.
A clay pigeon thrower is a device used to launch
clay pigeons. It is mainly used in shooting sports,
where it propels clay targets into the air using
spring or motor power for shooters to practice or
compete with.
A clay pigeon thrower is composed of a spring, a motor, and control system. It can automatically load clay targets and adjust the launching direction and height. The device can respond to the shooter's instructions and launch targets automatically.
It is mainly used in shooting training and
competitions, such as in trap shooting events, to
improve shooting skills by simulating real combat
environments.
When operating, attention should be paid to
maintaining a safe distance. It is forbidden to
stand directly in front of the clay pigeon thrower
to prevent accidental injuries.
