T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target
T-bar portable folding stationary target

T-bar portable folding stationary target

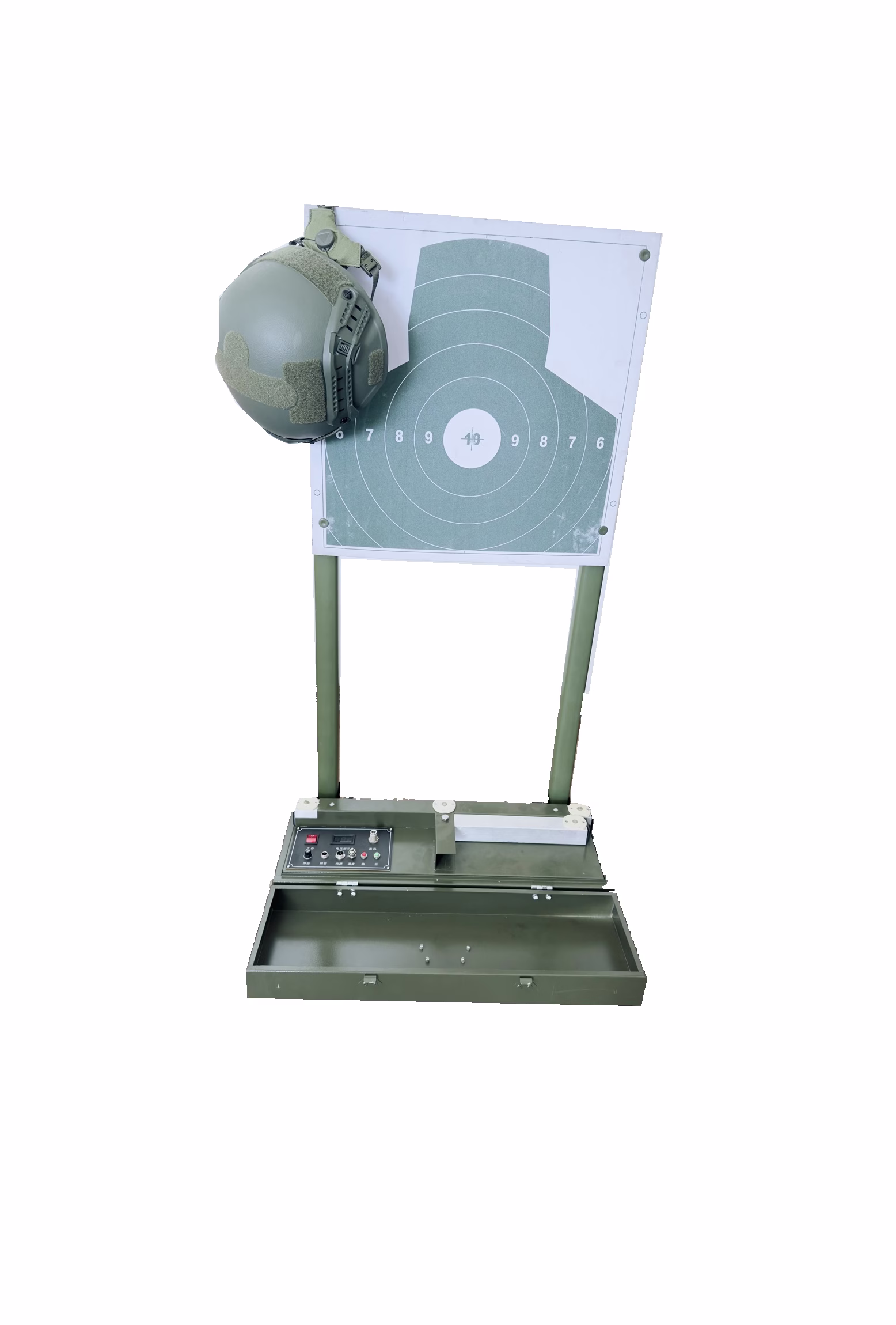

T-bar portable folding stationary target simulates the shape characteristics and standing movements of imaginary enemy targets in the training, and supports the high precision shock target warning, which is mainly used in the training of high precision shooting. Portable folding stationary T-bar target can meet rilfes to single target, group target shooting, recording and evaluation of shooting results.
T-bar portable folding stationary target

No.

 PartName

Quantity

Unit

Remarks

1

Master server

1

pc

Including software

2

Communication system

1

set



3

Portable fixed target machine

10

pc



4

Shooter monitor

10

pc

Including software

5

Power supply battery pack

10

set

24v12AH

6

HF antenna

10

pc

2.4GHZ

7

Target board

10

pc

EVA material

8

Target rod

20

pc

1.2m

9

Target Charger

10

set



10

Spare parts kit

1

set



11

Instruction manual

1

pc



12

Certificate card

1

pc



13

Packing box

10

pc

Wooden box

Download
Product Description Product Composition Specifications Product Features Complete Set Configuration

PRODUCT DESCRIPTION

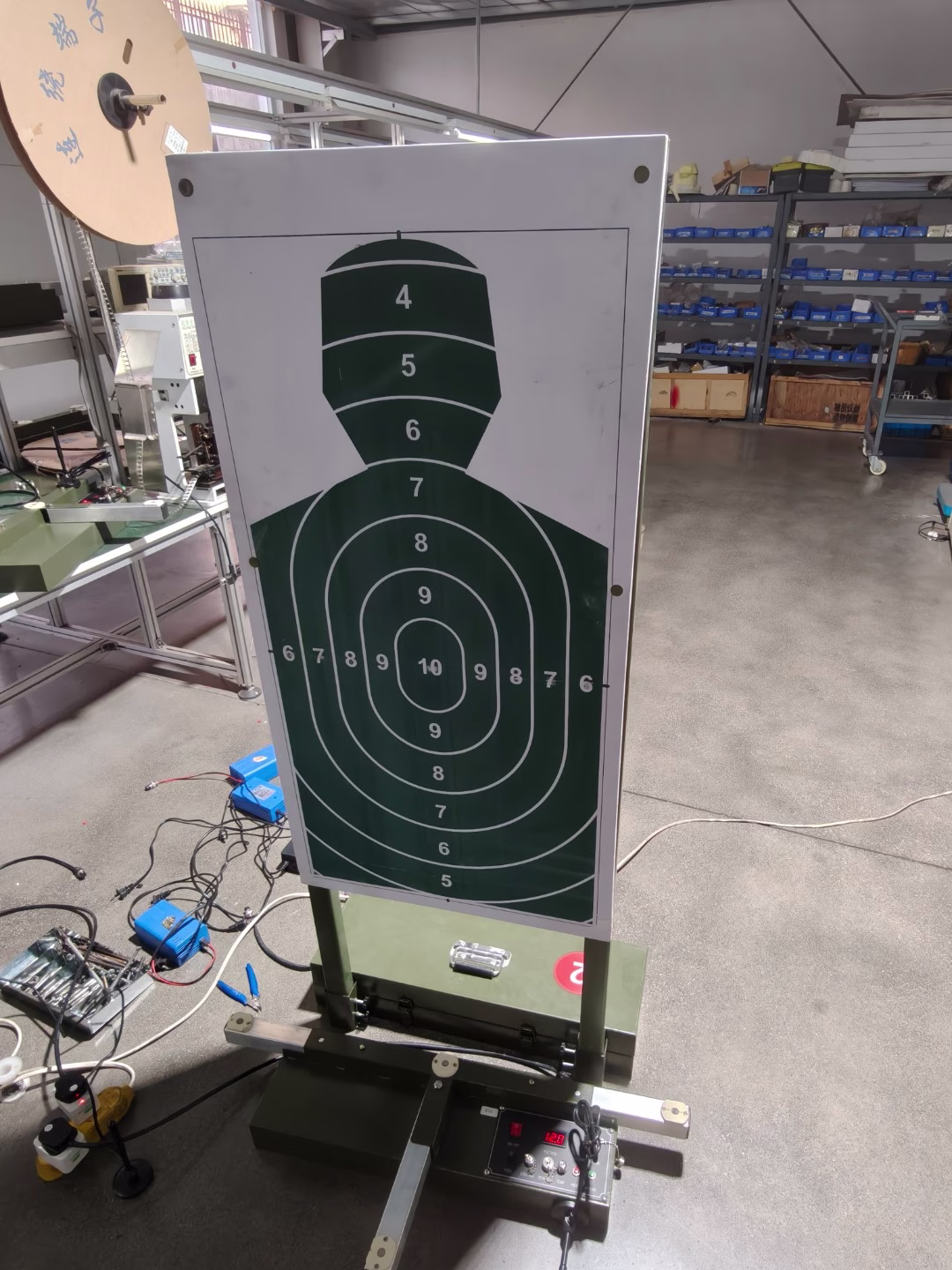

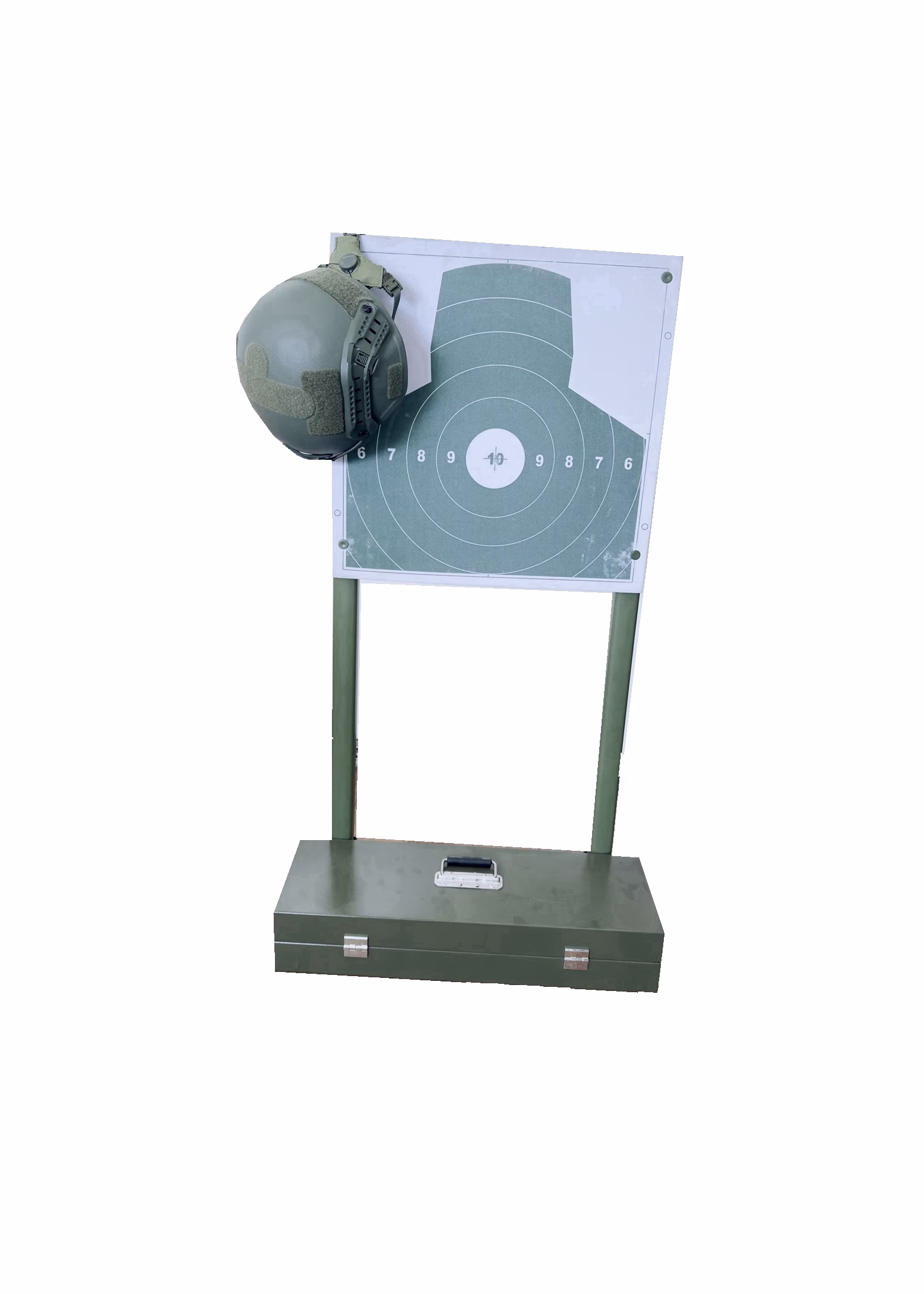

T-bar portable folding stationary target are designed to be portable, with a lightweight target and short deployment time. The target aircraft calculates the location of the impact point based on the spatial geometric relationship between the impact point and the sensor array by analyzing the process of projectile incidence.

PRODUCT DESCRIPTION

PRODUCT COMPOSITION

The T-bar portable folding stationary target system consists of a master server, a router, a communication system, chargers and batteries, T-bar folding target machine , and target plates. By analyzing the process of projectile incidence and utilizing the time difference to map the model onto the target position based on the spatial geometric relationship between the impact point and the sensor array, the position of the impact point can be calculated.

The master server connects to the target machines via Zigbee, and links to the shooters' monitors through WiFi. This system supports functions such as inputting, editing, and deleting participant information, training courses, and training plans, as well as querying and printing shooting scores.

The impact point positon can be calculated, by analyzing the process of projectile incidence and using the time difference to map the model to the target position based on the spatial geometric relationship between the impact point and the sensor array.

A high-power communication system can provide 2.4G wireless services, providing a cleaner wireless environment, and more stable wireless access. It can accurately transmit signals from the target and the master control server to each other within a range of 1-500 meters.

PRODUCT COMPOSITION

SPECIFICATIONS

No.

Item

Target

1

Applicable target type

Common precision chest ring target, chest target,body target, head target and other common target types of the  whole army

2

Applicable gun type

Rifles

3

Applicable bullet diameter

5.56mm～12.7mm

4

Applicable projectile speed

100m/s～1500m/s

5

Applicable temperature

-30℃～+65℃

6

Battery pack

24v8aH

7

Target reporting accuracy

≥99.5%

8

Target reporting accuracy error

≯3mm

9

Continuous capture

1-50 shooting

10

Control the number of targets simultaneously

10 sets

11

Rain proof grade

100mm/h，30min

12

Target reporting response time

≤0.5s

13

Wireless control distance

1～300m（Intervisibility）

PRODUCT FEATURES

  • T-bar portable folding stationary targets are designed to be portable, with a lightweight target and short deployment time. The target aircraft calculates the location of the impact point based on the spatial geometric relationship between the impact point and the sensor array by analyzing the process of projectile incidence.

    T-bar portable folding stationary targets are designed to be portable, with a lightweight target and short deployment time. The target aircraft calculates the location of the impact point based on the spatial geometric relationship between the impact point and the sensor array by analyzing the process of projectile incidence.

  • The target sensors uses the time difference to map the model to the target position and calculate the impact point position according to the spatial geometric relationship between the impact point and the sensor array by analyzing the process of projectile incidence.

    The target sensors uses the time difference to map the model to the target position and calculate the impact point position according to the spatial geometric relationship between the impact point and the sensor array by analyzing the process of projectile incidence.

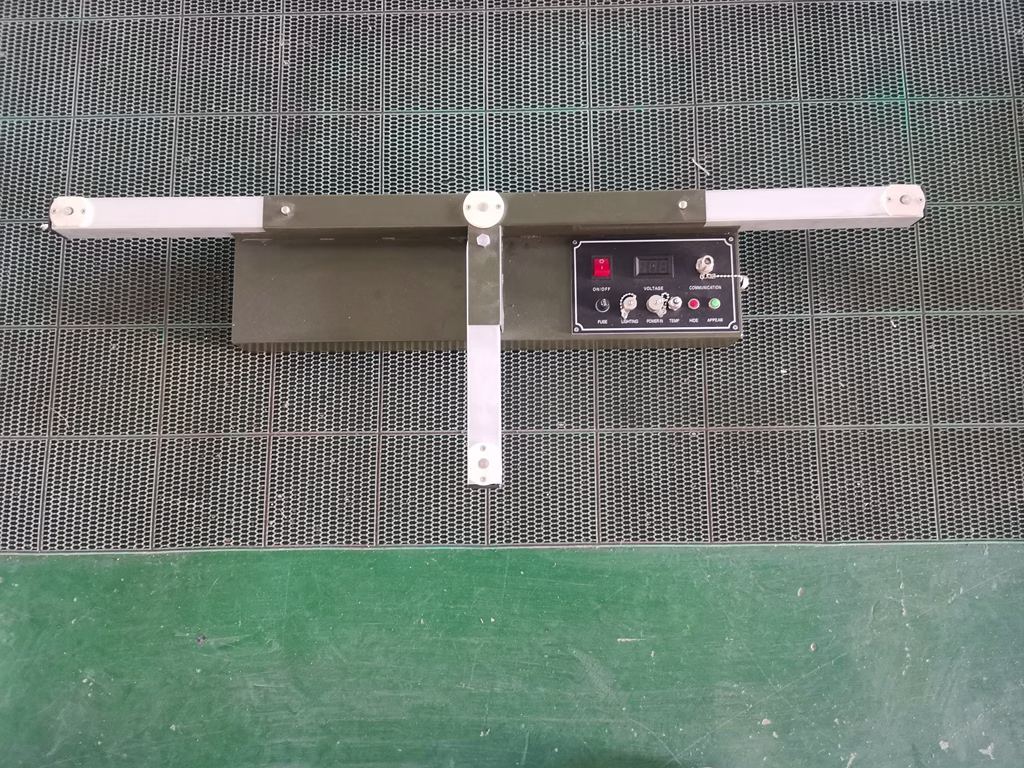

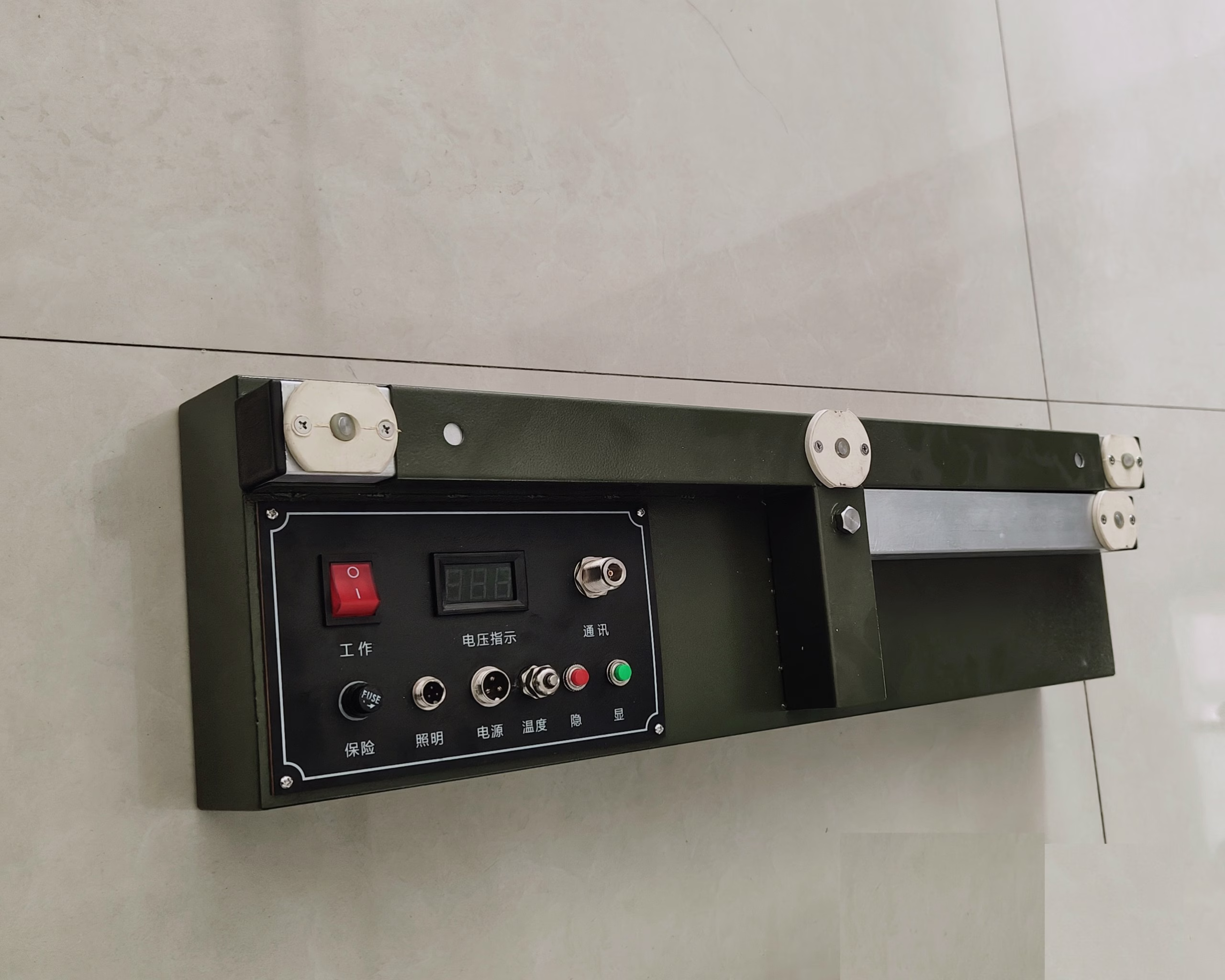

  • The target machine uses a DC battery pack for power supply, which can be independently separated and quickly replaced, and can be interchanged to facilitate on-site target deployment, charging regulation, battery replacement, etc.

    The target machine uses a DC battery pack for power supply, which can be independently separated and quickly replaced, and can be interchanged to facilitate on-site target deployment, charging regulation, battery replacement, etc.

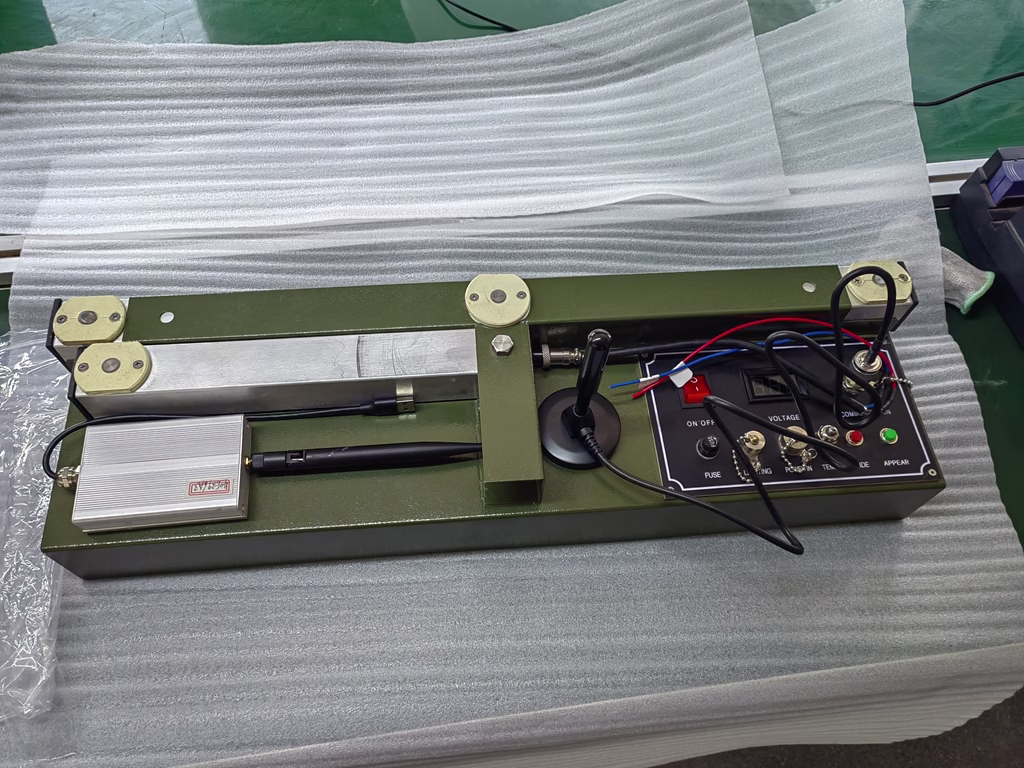

  • The target system master server can display the target type, impact point, bullet sequence, number of single rounds, total number of rounds, projectile distribution evaluation, and shooter information in image and text.

    The target system master server can display the target type, impact point, bullet sequence, number of single rounds, total number of rounds, projectile distribution evaluation, and shooter information in image and text.

  • You can enter, edit, and delete the information of participants, training courses, and training plans, as well as query and print shooting scores.

    You can enter, edit, and delete the information of participants, training courses, and training plans, as well as query and print shooting scores.

COMPLETE SET CONFIGURATION

No.

Part name

Quantity

Unit

Remark

1

Master sever

1

pc

Including software

2

Communication system

1

set



3

Armor H-bar  pop-up target

1

pc



4

Target remote control

1

set



5

Power supply battery pack

1

pc

24v38ah

6

HF antenna

1

set

900MHZ

7

Target plate

1

set

Camouflage net

8

Target rod

2

pc

Wood

9

Target charger

1

set



10

Spare parts kit

1

set



11

Instruction manual

1

pc



12

Certificate card

1

pc



13

Packing box

1

pc

Wooden box
