The V-shaped bullet trap functions by using angled steel plates to deflect and decelerate bullets through a funneling effect, safely channeling projectiles and fragments into a rear collection chamber while preventing ricochets and containing hazardous lead dust.

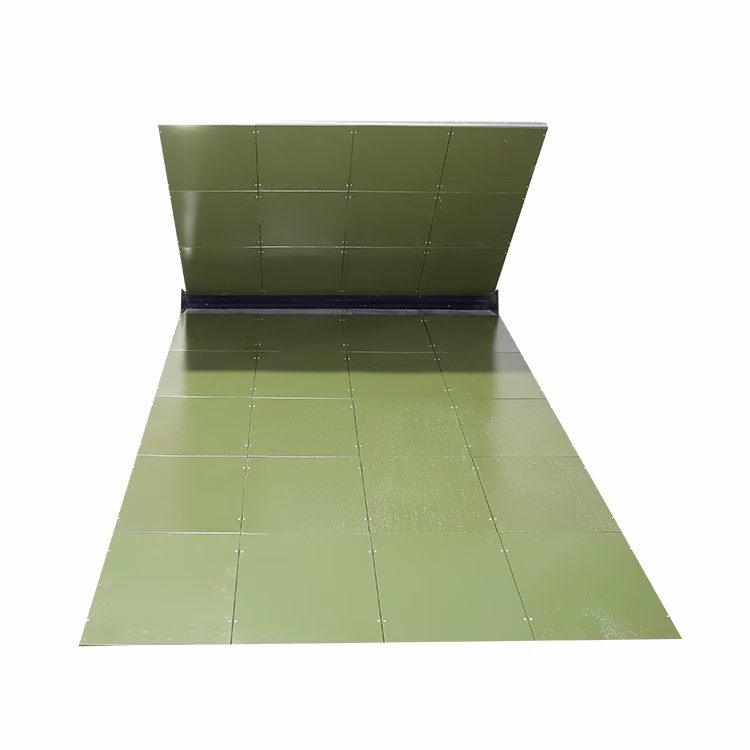

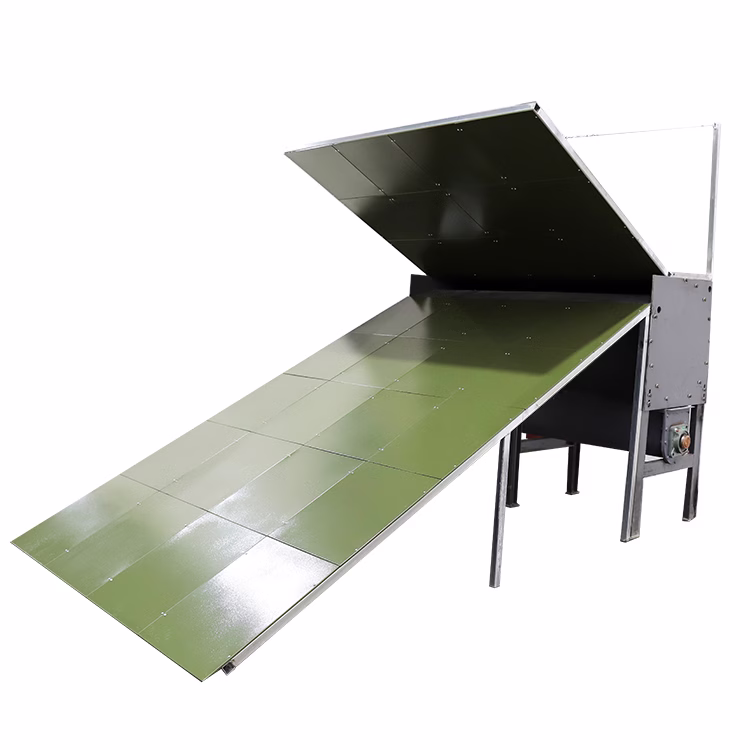

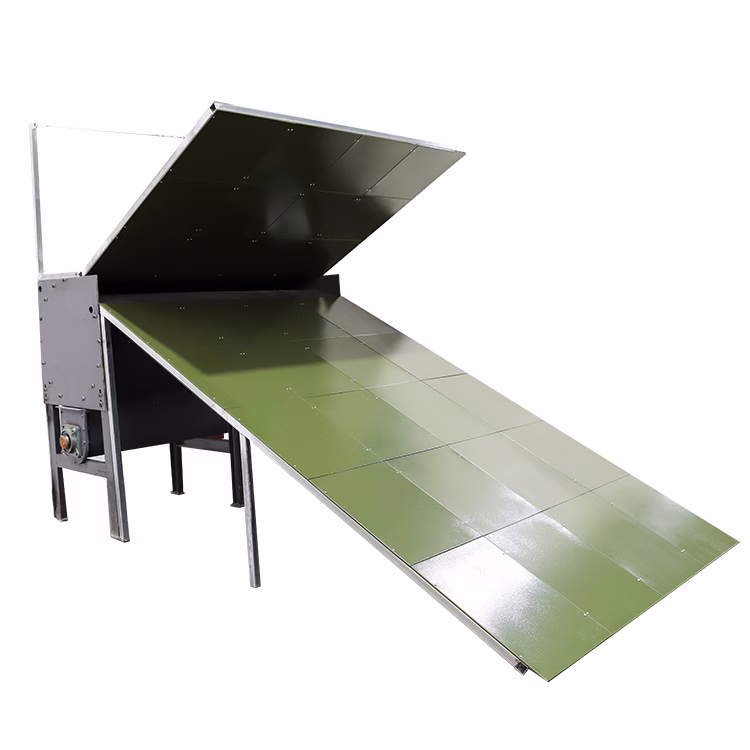

A v-shaped bullet trap consists of two angled steel plates that form a funnel, using deflection to neutralize bullets. Instead of a direct impact, the bullet strikes the plates at an angle and slides toward the center, losing kinetic energy through multiple ricochets before falling into a collection chamber. This design effectively prevents back-splatter, extends the lifespan of the steel, and allows for the safe containment and recycling of lead fragments.
No. | Item | Index |
1 | Intercepted bullet count | >30000 bullets per square meter |
2 | Bulletproof steel plate thickness | 8mm |
3 | Bulletproof steel plate material | NP550 bulletproof steel plate |
4 | Ballistic protection | ATI Class 1 (handgun) and ATI Class 2 (rifle) rated options are available |

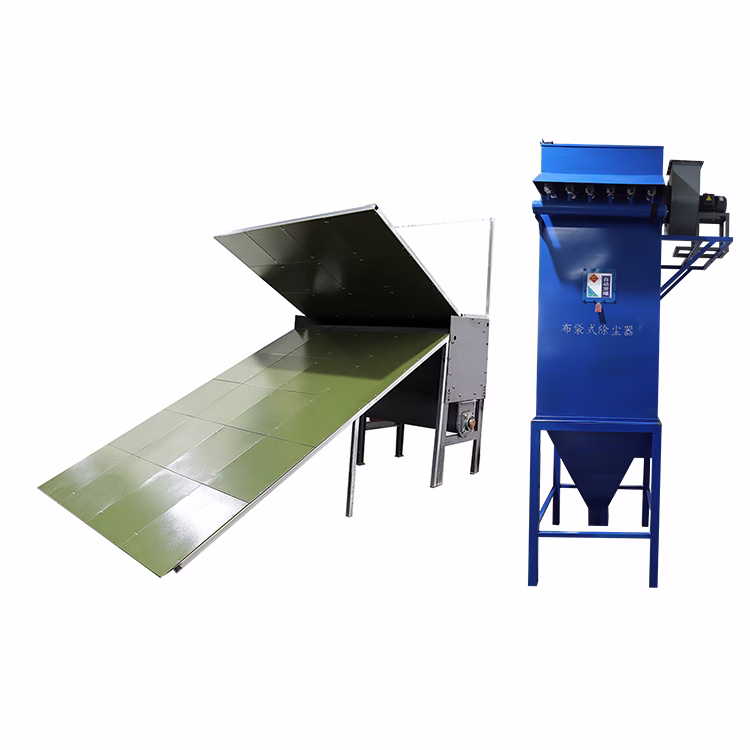

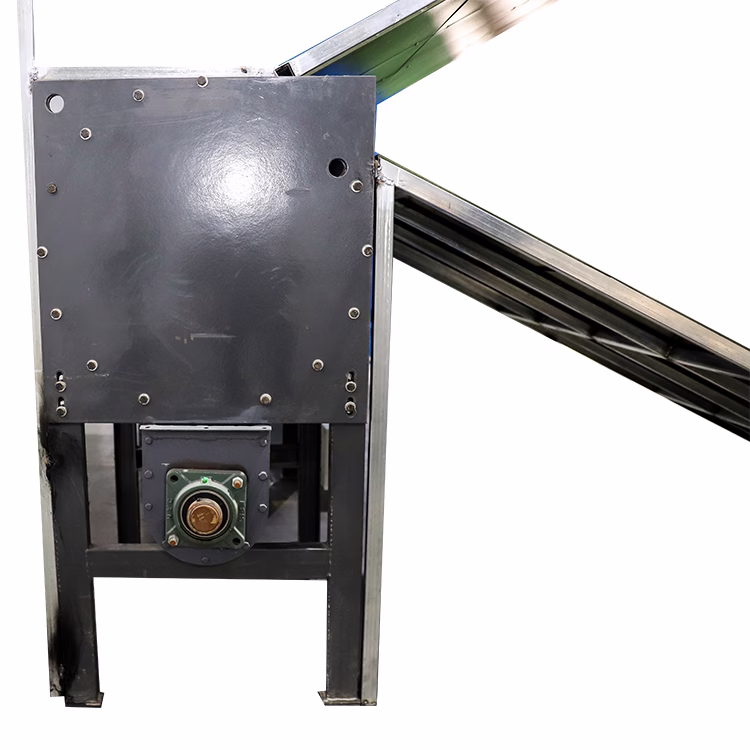

Spiral V-shaped ammunition collector and Spiral warhead collector. This design effectively prevents back-splatter, extends the lifespan of the steel, and allows for the safe containment and recycling of lead fragments.

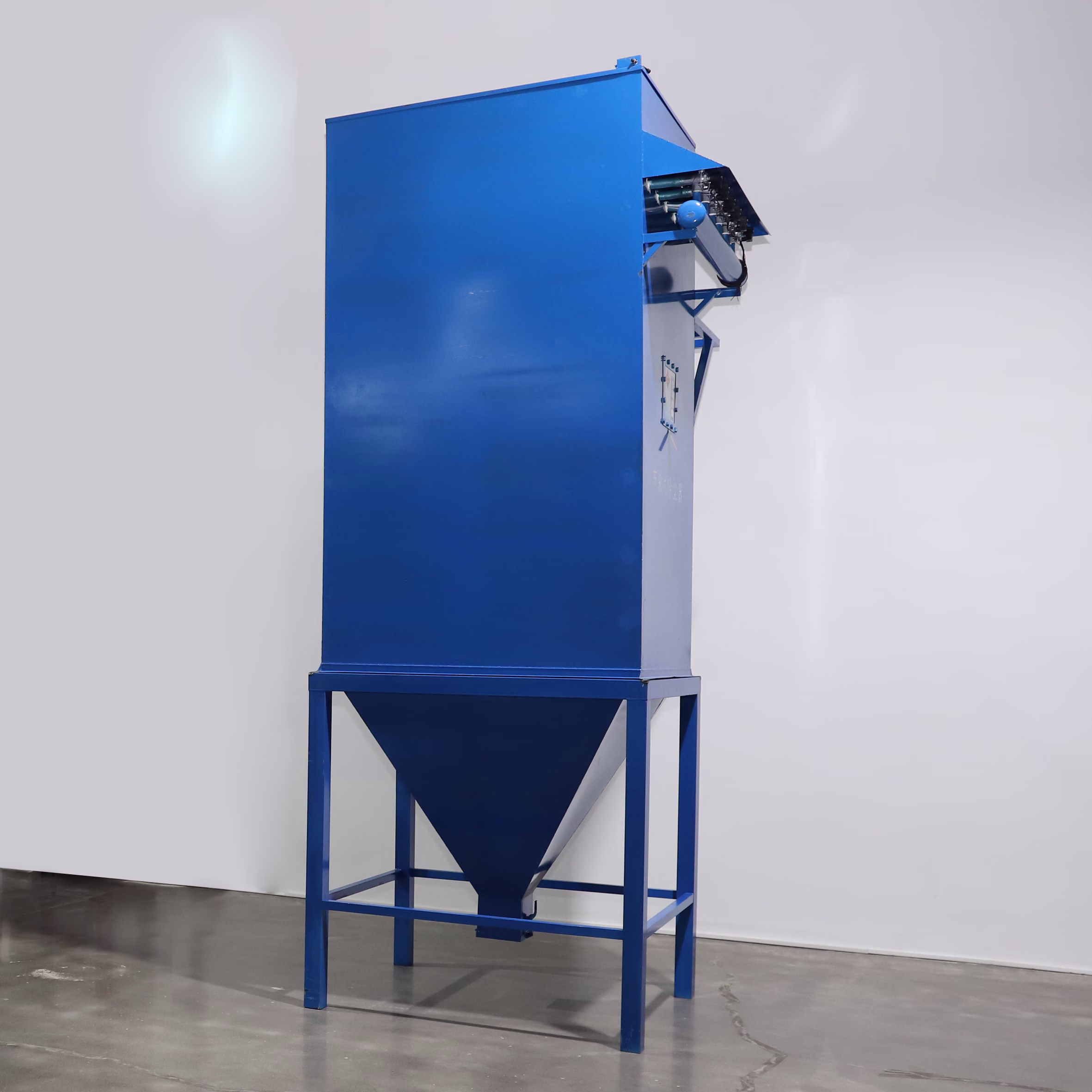

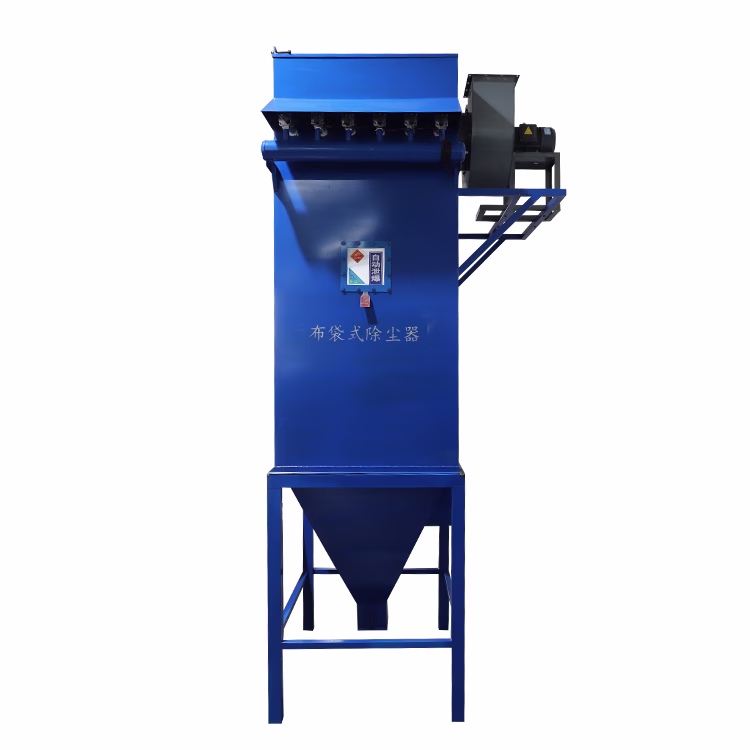

Lead powder collection system collects the bullets lead powder and clean the indoor range air.
Instead of a direct impact, the bullet strikes the plates at an angle and slides toward the center, losing kinetic energy through multiple ricochets before falling into a collection chamber.
